Description
HIGH-OCTANE THRILLS AWAIT

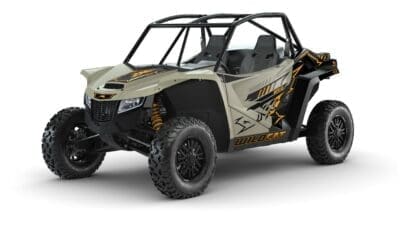

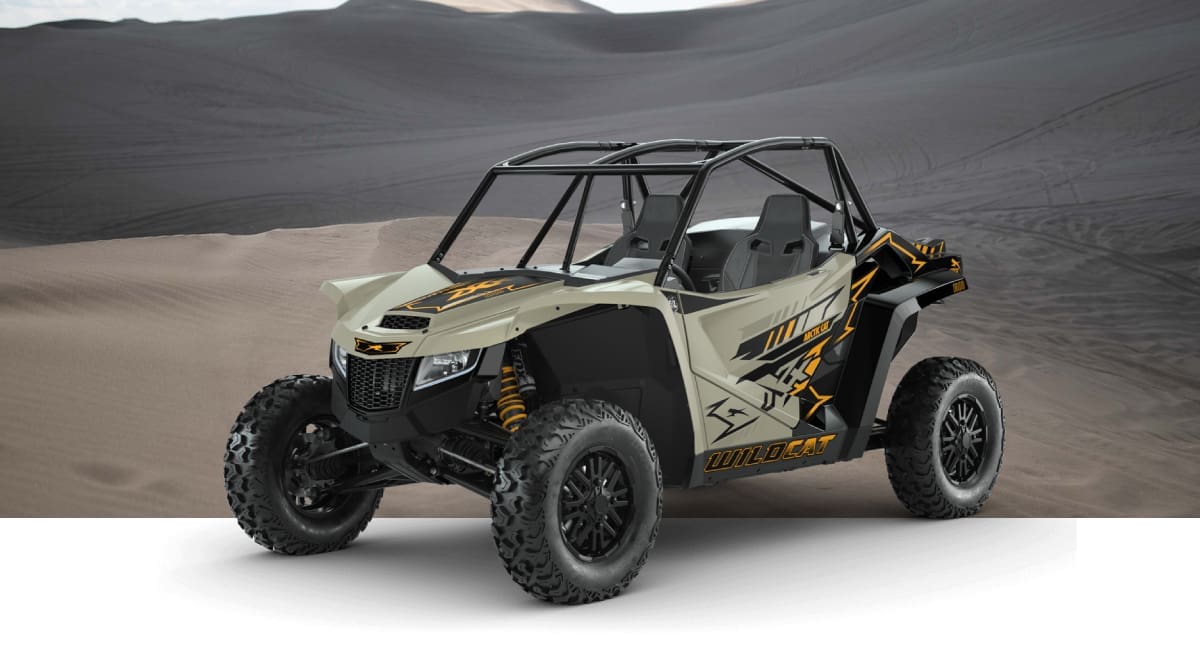

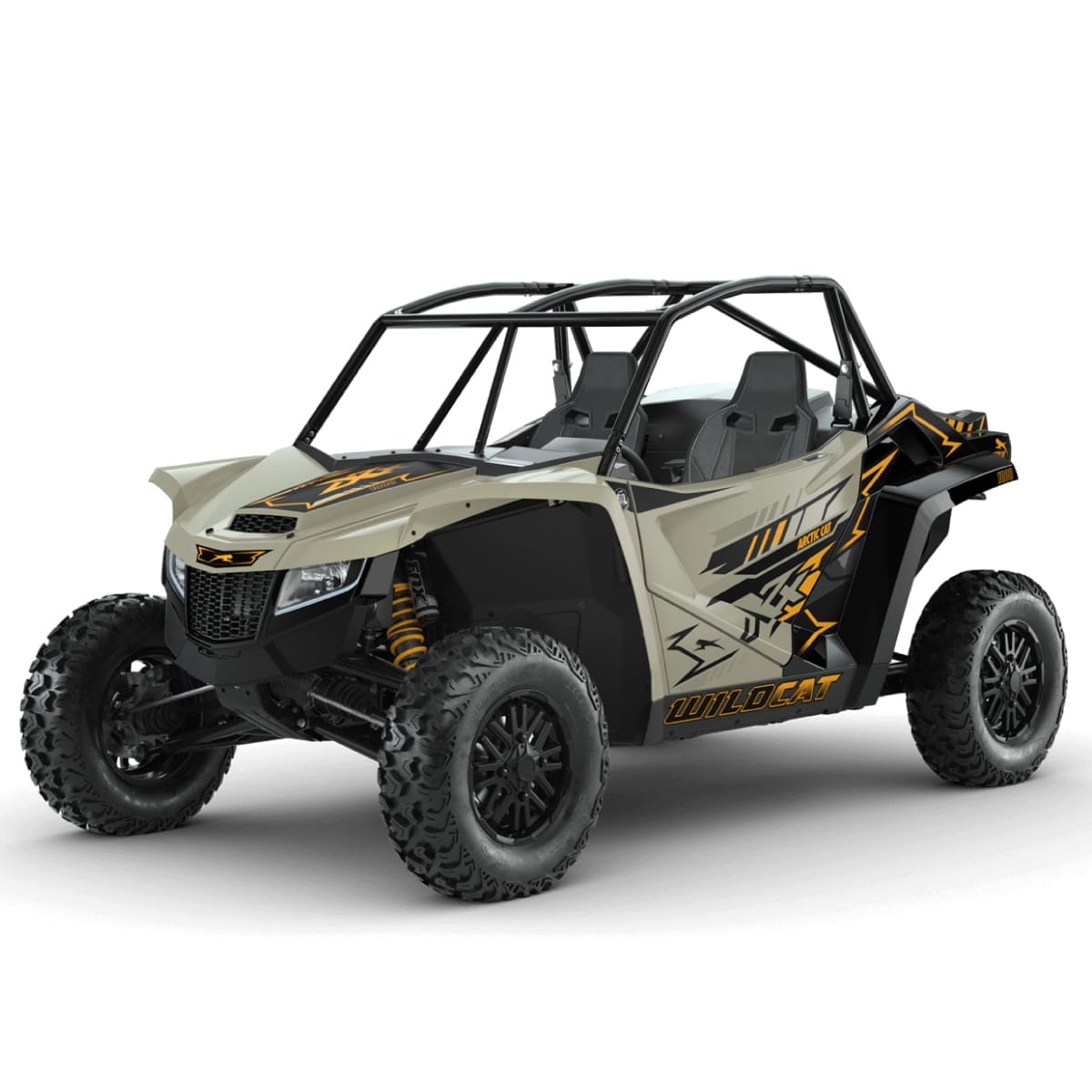

Wildcat XX
A side-by-side ready to take on dirt, dunes, mud, and rocks with 130HP and suspension technology rooted in off-road racing.
- Premium FOX® 2.5 PODIUM QS3 Shocks with Bottom-Out Control
- Class Leading 130 HP Engine
- 18 Inches of Front and Rear Travel
- Shift on the Fly 4WD with Locking Front Differential
- 15-inch Ground Clearance
- Standard Features: Color Matched Suspension
Wildcat XX

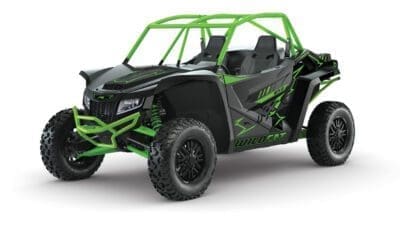

Wildcat XX LTD

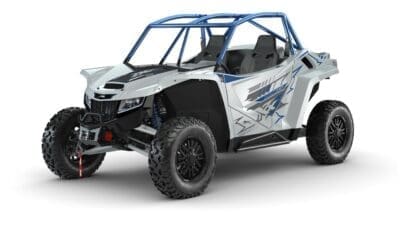

Wildcat XX SE
Off-Road Racing |
Locking |
30 Inch |
High Output |
Rear |
Suspension System |
Front Differential |
Tires |
3 Cylinder Engine |
Trailing Arms |
LEARN MORE
DOMINATE ANY TERRAIN

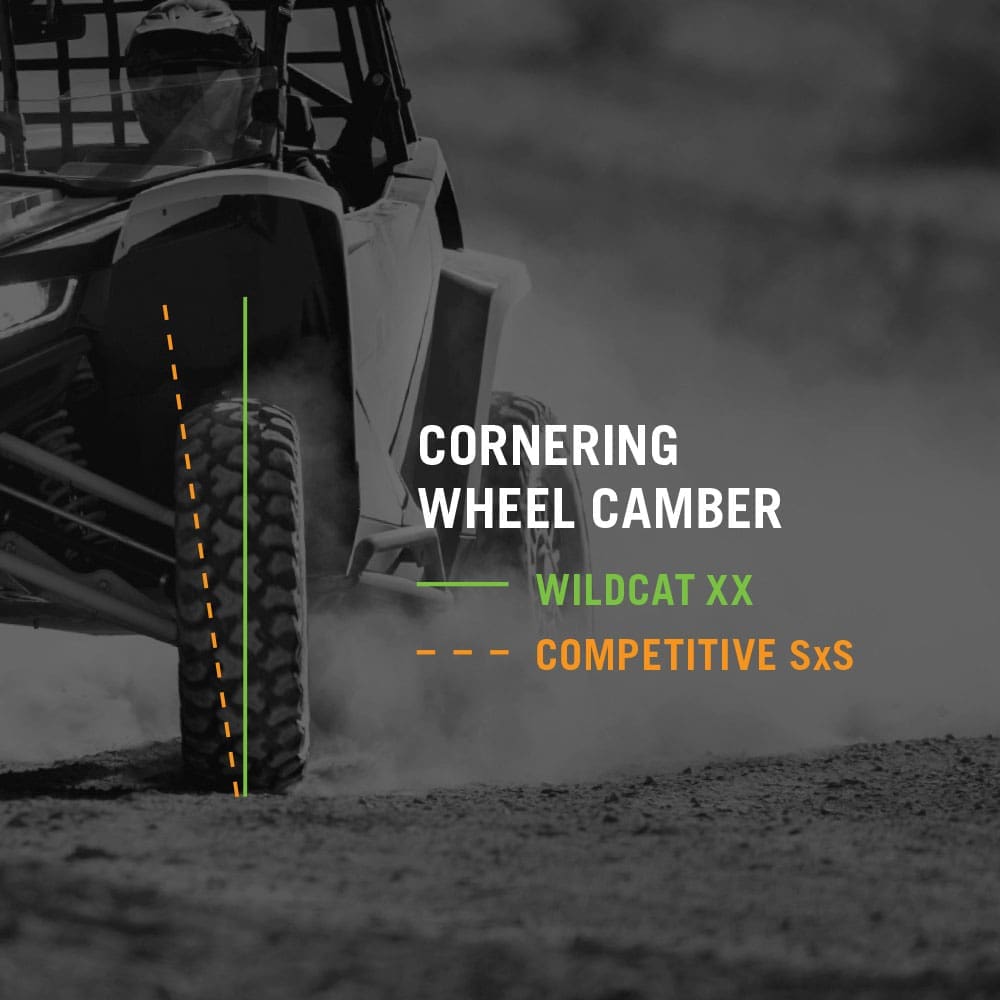

OFF-ROAD RACING INSPIRED SUSPENSION SYSTEM

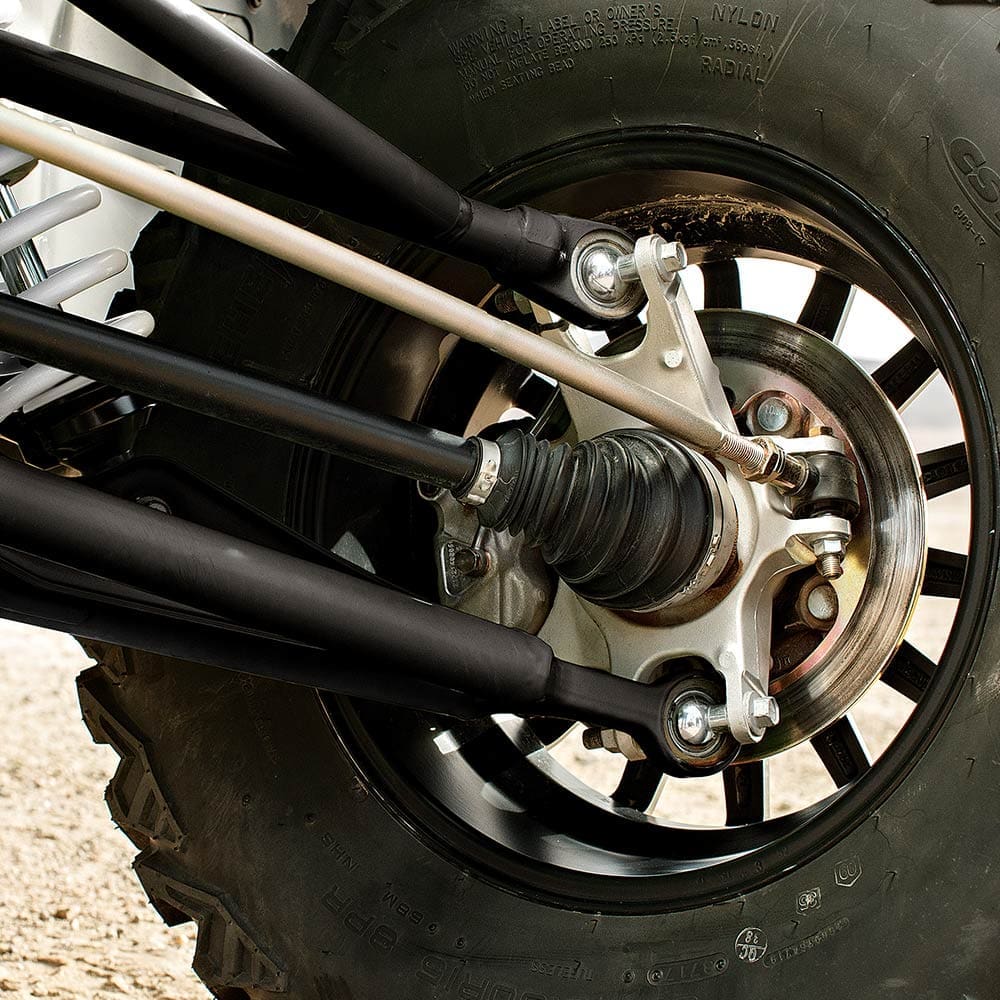

The Wildcat XX utilizes a unique suspension system built specifically to dominate uneven terrain. With unequal length A-Arms that neutralize camber and the industry’s only true trailing arms, this side-by-side is able to gain more traction and stabilize easier through tough turns and tougher trails.
SEE MORE >

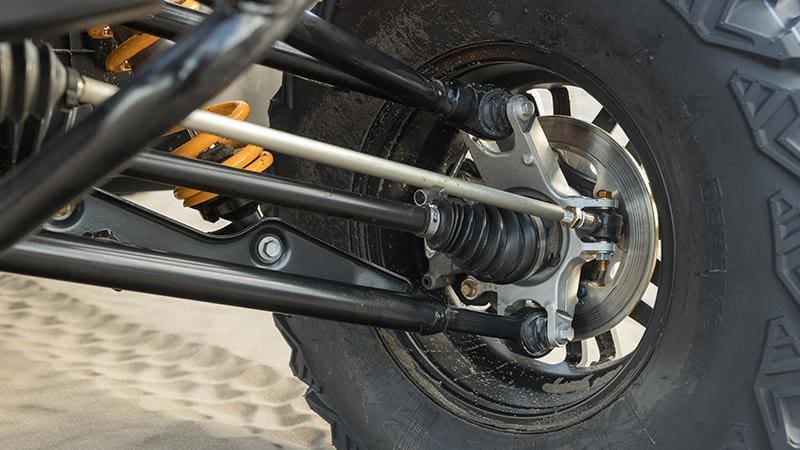

UNBEATABLE STRENGTH
DURABLE COMPONENTS
Rocks and dunes aren’t for the weak. That’s why we loaded Wildcat XX with unstoppable features to help you get the most out of every ride.
SEE MORE >
ADAPTABLE CONTROL

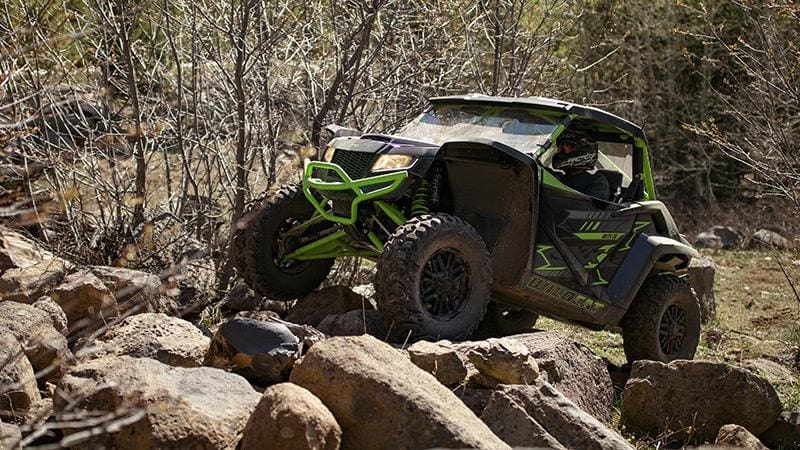

SHIFT ON THE FLY 4WD WITH LOCKING FRONT DIFFERENTIAL
With Arctic Cat’s proven 2/4-Wheel Drive selectability, navigating the world’s boldest terrain is a cinch. Need more? 4WD Diff Lock can aid in the Wildcat’s superior rock-crawling prowess.

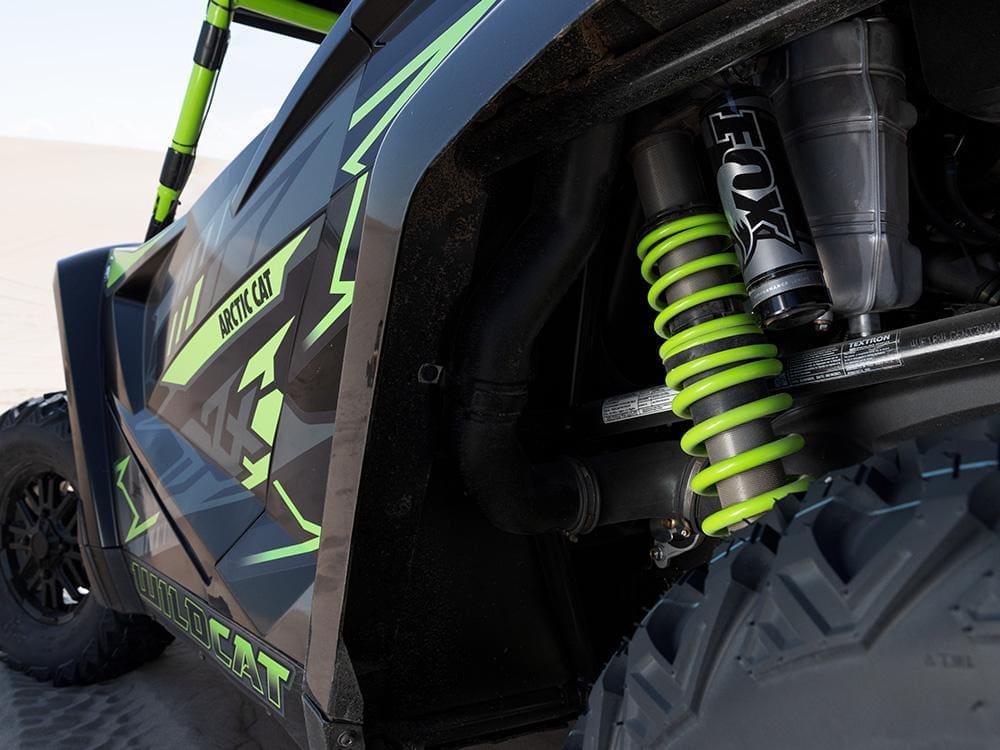

SUPPORT FOR ALL RIDES

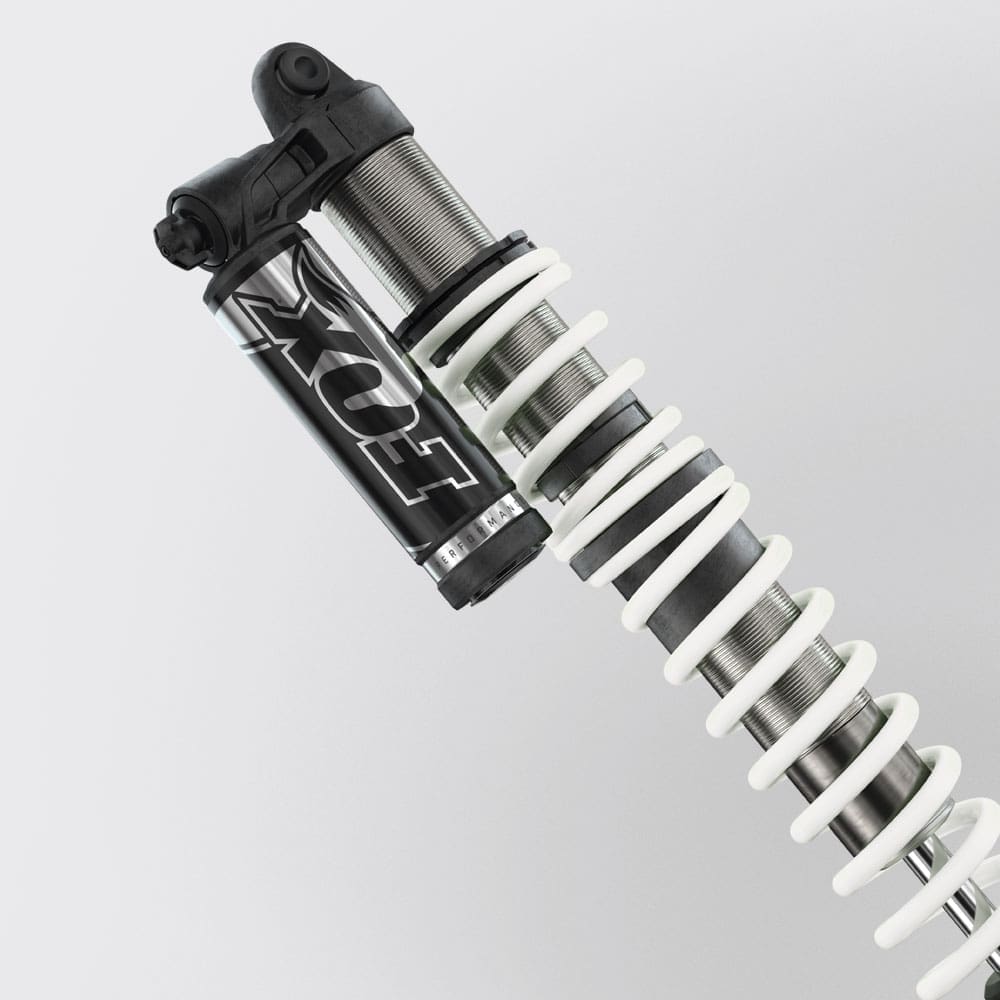

PREMIUM FOX 2.5 PODIUM QS3 SHOCKS WITH BOTTOM-OUT CONTROL
With the Wildcat XX, you won’t have to compromise between shocks that can absorb big bumps and shocks that offer a more comfortable ride- we gave the side-by-side both. A three-position shock dial control lets you switch from soft, medium, and firm settings depending on the terrain, and with bottom-out control, you’ll get an extra 3,000 lbs of damping force when you hit bumps in the trail.
SEE MORE >
NO ROUGH RIDES
18 INCHES OF FRONT AND REAR TRAVEL
Wildcat XX doesn’t flinch at a bump in the road. It has more than enough travel to tame any terrain by dampening the impact of uneven trails.
INCREASED STRENTH AND PERFORMANCE
NEW TRANSAXLE
With our new transaxle offering increased strength and durability, your Wildcat XX will be ready to conquer dunes, dirt, mud and rocks without sacrificing rider confidence or maneuverability.

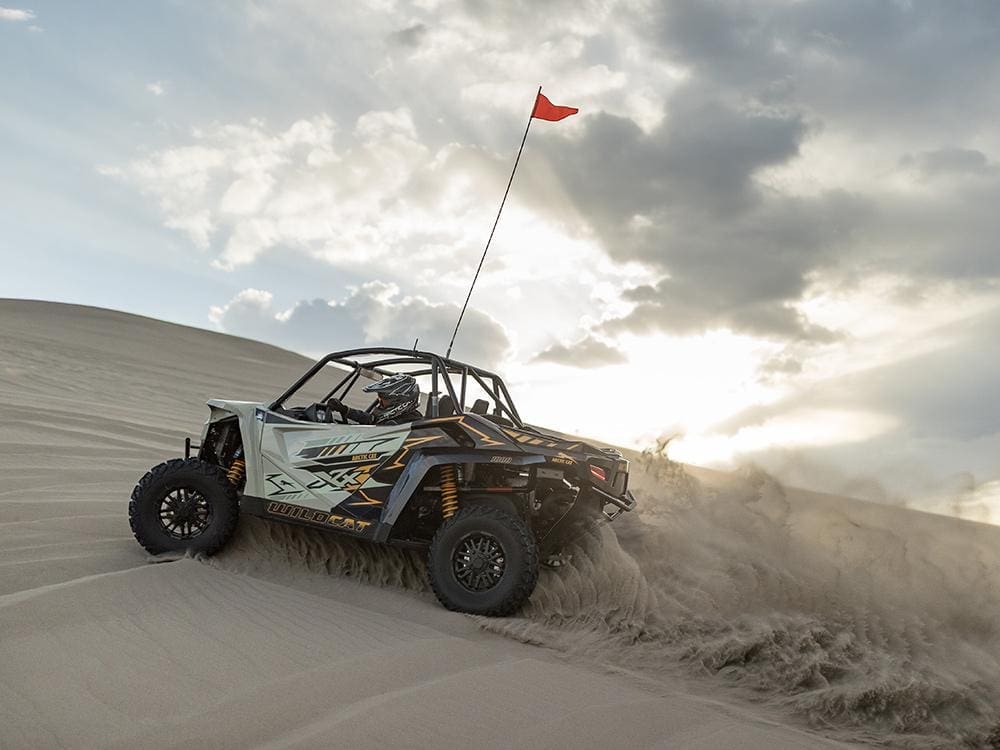

RACE-WORTHY POWER
CLASS-LEADING 130HP ENGINE
Equipped with a class-leading 998cc, three cylinder, 4-stroke EFI engine producing 130HP, the Arctic Cat Wildcat XX is built to push the limits. The powerful DOHC engine allows for better airflow with fewer obstructions and offers more efficient, consistent performance. With power like this, prepare for exhilaration.
ELEVATE YOUR RIDE

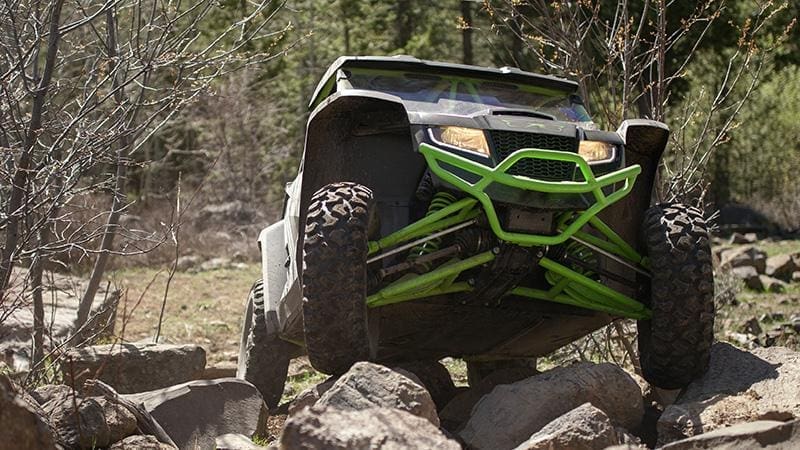

15-INCH GROUND CLEARANCE
You want a side-by-side that will stay high above any terrain, so you can leave obstacles, and the competition, in the dust. The Wildcat XX is ready with 15-inch ground clearance to avoid unwanted debris and keep you above the rest.
KEEP COOL
DUAL CVT AIR-INTAKE
Those long days of riding can get warm, but that doesn’t mean your vehicle has to. The Wildcat XX’s dual CVT air-intake will keep your CVT belt cool and extend its life, even on the hottest days.
SMOOTH POWER DELIVERY
ADAPT CVT CLUTCH
New Drive and Driven clutches are lighter-weight and employ a compact design with advanced idler system. ADAPT maintains constant belt tension throughout the RPM range resulting in minimized wear, maximum throttle response and longer belt life for your Wildcat XX.
SAFETY FIRST

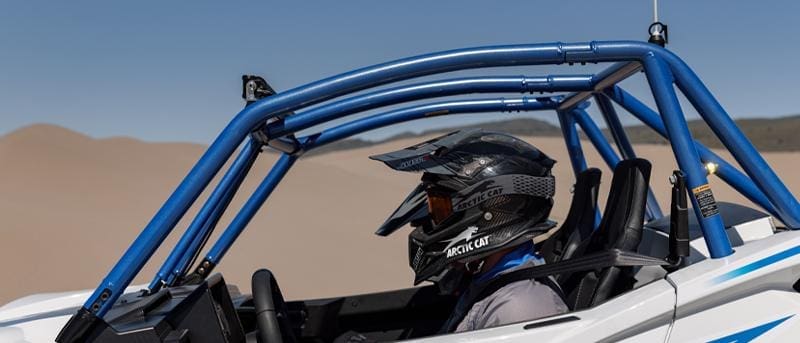

RACE-INSPIRED ROPS
You want to take on the toughest challenges with your Wildcat XX. Luckily, we’ve got you covered with our durable roll-over protection system. Take your side-by-side to the extremes while staying safe with safety features that keep up with your riding style.
STAY PROTECTED

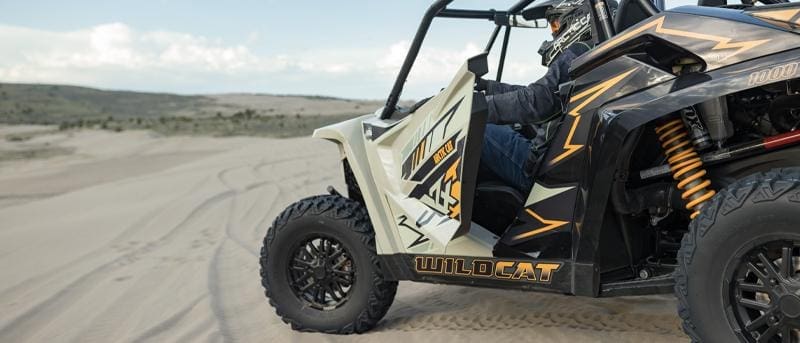

STANDARD FULL DOORS
Full-length hard doors give riders added protection from the elements.

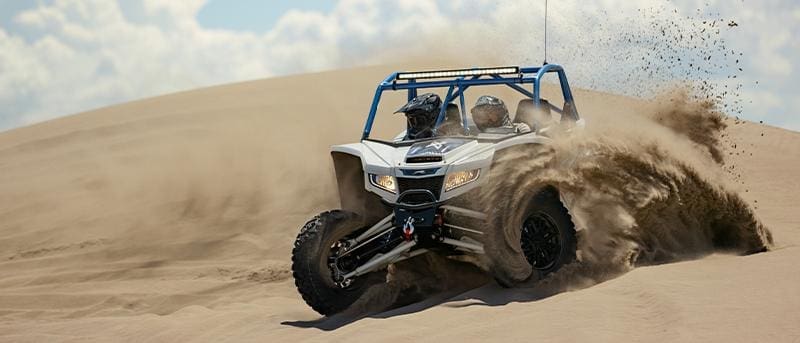

BLOCK OUT DEBRIS
OVERSIZED FENDERS
We know as well as anyone that you don’t want a ton of dust and debris in the cab of your side-by-side. Our oversized fenders over each wheel prevent that from happening, keeping you covered while you ride.

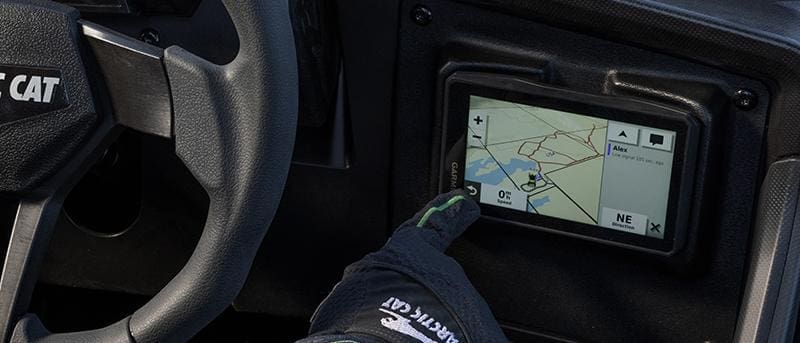

ACCESSORY READY
Get more juice for your add-on parts with a standard 65-amp alternator and pre-installed wiring.
KEEP YOUR GRIP

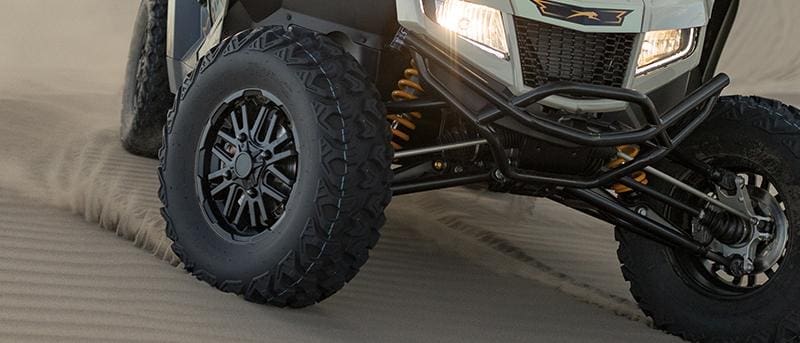

PREMIUM TIRES AND WHEELS
Equipped with 30-inch Behemoth tires, the Wildcat XX is designed to keep hold as you navigate all kinds of terrain. Combined with 15-inch custom wheels, this side-by-side gives ample ground clearance and plenty of traction while you hit the trails..
STORE MORE

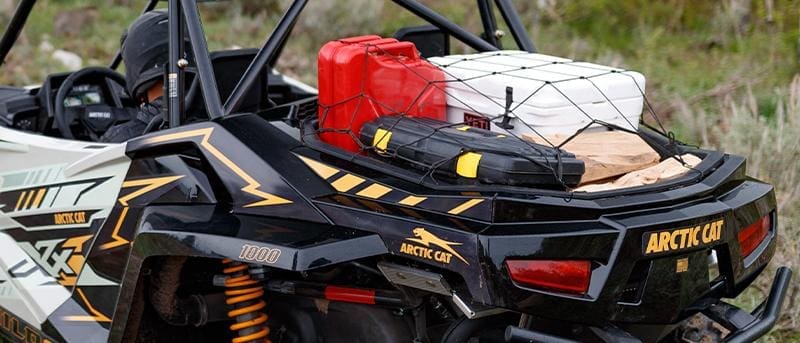

300-LB BED CAPACITY
Nobody wants to be caught without the essentials on a long riding day. The Wildcat XX allows you to fit everything you need with a bed large enough to fit a full-sized spare tire.

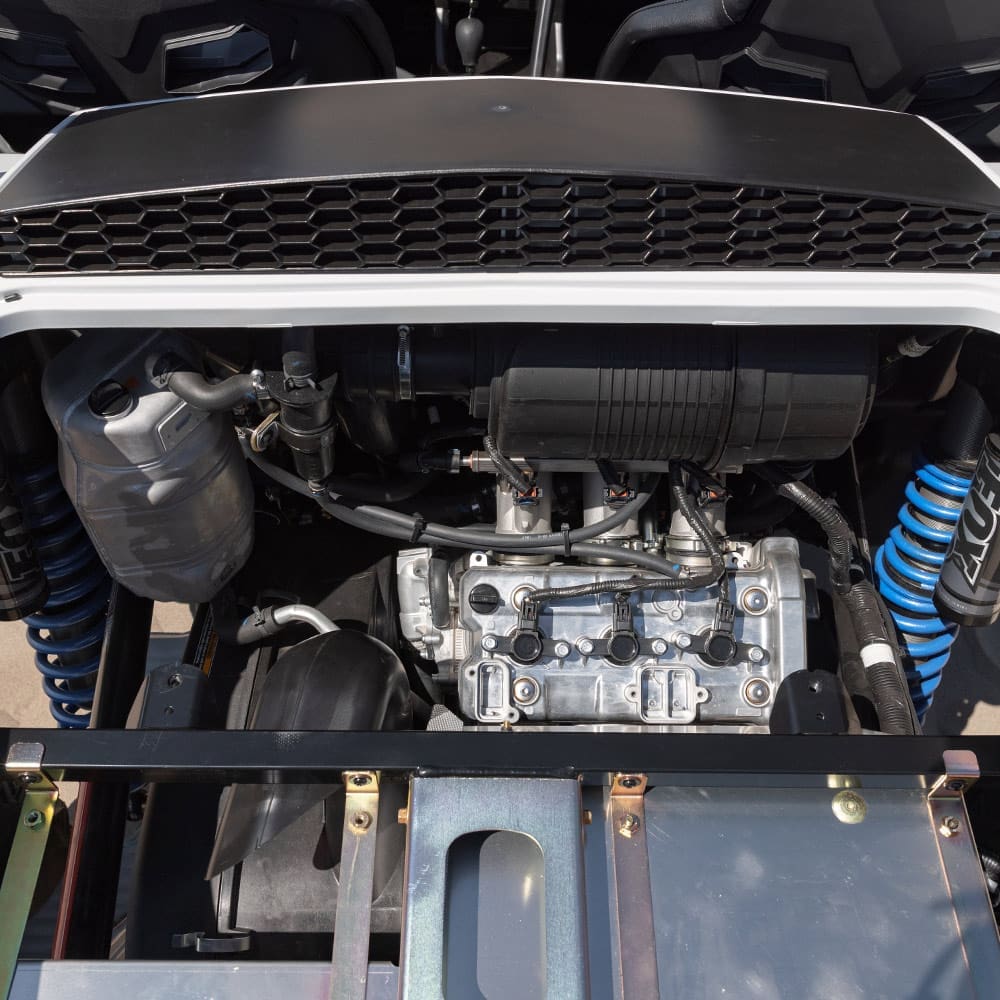

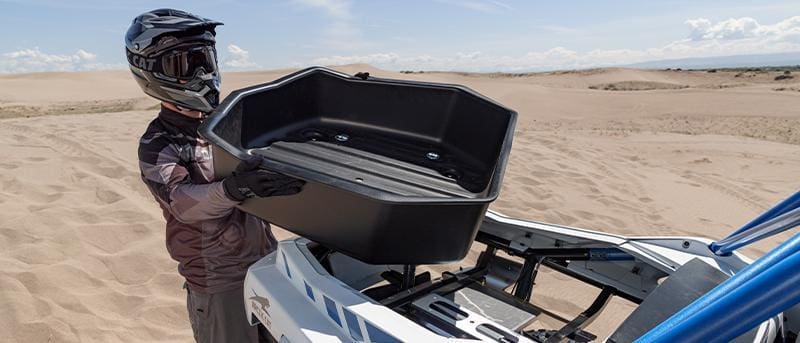

EASY TO SERVICE
REMOVABLE COMPONENTS
We’re making it easier than ever to service your Wildcat XX. Toolless and removable components give you quick access for easy serviceability to get you back out on your unit faster than ever before.
SEE MORE >
PROTECT YOUR RIDE
6-MONTH WARRANTY
We want you to be prepared for anything, so we’ve equipped you with a robust 6-month warranty.
ENGINE & DRIVETRAIN
|
WILDCAT XX |
Engine Type |
Liquid-Cooled, 3 Cylinder |
Horsepower |
130HP |
Displacement |
998cc |
Drive Train |
ADAPT CVT |
Drive System |
2WD / 4WD Electric Actuation, with Selectable Front Diff Lock |
Fuel System |
EFI (Electronic Fuel Injection) |
Gear Selection |
H/L/N/R/P |
Front Differential |
2WD / 4WD Selectable Locker |
Rear Differential |
Locked |
STEERING & SUSPENSION
|
WILDCAT XX |
Steering |
Electronic Power Steering |
Front Suspension |
Double A-Arm with 18-in. (46 cm) Travel |
Rear Suspension |
Trailing Arm with 18-in. (46 cm) Travel |
Shock Absorbers |
FOX 2.5 PODIUM QS3 with Compression Adjustment (Front) FOX 2.5 PODIUM QS3 with Compression Adjustment and Bottom-Out Control (Rear) |
Brake System |
4 Wheel Hydraulic Disc, Dual Piston Caliper Front, Single Piston Caliper Rear |
Parking Brake |
Park in Transmission |
Front Tires |
CST Behemoth / 30×10-15 |
Rear Tires |
CST Behemoth / 30×10-15 |
Wheels |
15″ Aluminum KMC |
PERFORMANCE
|
WILDCAT XX |
Total Capacity |
730 lbs (331 kg) |
Bed Capacity |
300 lbs (136 kg) |
ELECTRICAL
|
WILDCAT XX |
Alternator (Electrical Charging System) |
470 Watt Stator and 65 Amp Alternator |
Accessory Connection System |
Pre-Wired Connections for up to 8 Accessories (4 Switch & 4 Key-on) |
DIMENSIONS
|
WILDCAT XX |
Overall Length |
136 in. (345.4 cm) |
Overall Width |
64 in. (162.6 cm) |
Overall Height |
67.5 in. (171.5 cm) |
Overall Weight (Dry) |
1,816 lbs (823.7 kg) |
Wheelbase |
95 in. (241.3 cm) |
Ground Clearance |
15 in. (38.1 cm) |
Fuel Capacity |
10 gal (37.9 L) |
Hitch |
Not Equipped |
Glove Box Capacity |
4 gal (15.1 L) |
Bed Dimensions (L x W x H) |
34 x 32 x 9 in. (86.4 x 81.3 x 22.9 cm) |
COLOUR OPTIONS
|
WILDCAT XX |
Standard Colors |
Fossil |
FEATURES
|
WILDCAT XX |
Skid Plate |
Full Length, 2 Piece |
Standard Instrumentation |
Multifunctional Digital Gauge |
Lighting |
Halogen with LED Accetn, Dual LED Tail Lights |
Start Method |
Electric Start |
Seating |
Stitched, Two-Tone, Contoured Bucket Seats, 3 Point Seat Belts |
Storage Components |
Cargo Bed, Glove Box |
Additional Features |
Standard Full Doors, 4-Point and Click-6 Belt Ready, Race Inspired ROPS with Front and Rear Intrusion Bars |
Standard Accessories |
Color Matched Suspension |
* Vehicle specifications are subject to change.
