Wildcat XX BLACK HILLS ED.

STARTING CAD* *Price does not include freight or set-up fees.

To Ride and Conquer

If you want to take on some of the toughest trails, you’ll need the best of the best. You want a side-by-side built for the challenging climbs and the tricky terrains. With the Wildcat XX Black Hills Edition, you’ll get just that. With trail-oriented features including a lower gear ratio transaxle and 32-inch trail tires, as well as a factory-installed Garmin Tread Powersports Navigator, you’ll be ready for the ride of your life.

Description

NEW FOR 2023

TO RIDE AND CONQUER

WILDCAT XX BLACK HILLS EDITION

This side-by-side does not play around. Designed for some hardcore riding, the Wildcat XX Black Hills Edition comes equipped with trail-oriented features that will enhance your experience. With a factory-installed Garmin Tread GPS with a long-range antenna, you can keep track of where you’ve explored, as well as your friends’ locations on the trails. Plus, with 32-inch trail tires and elevated ground clearance, you’ll be able to pass over more obstacles. And for more traction in your climbs, this side-by-side is equipped with an ALL-NEW lower gear ratio transaxle that helps you dig in. On top of all these features, you still get the power and suspension of a Wildcat XX side-by-side, so you’re set to take on some real challenges.

2022 Wildcat XX SE

Wildcat XX SE

2022 Wildcat XX

Wildcat XX

2022 Wildcat XX LTD

Wildcat XX LTD

HIGHLIGHTS
Off-Road Racing All New ADAPT Integrated Garmin 32-Inch
Suspension System Transaxle CVT System GPS Included Trail Tires



LEARN MORE

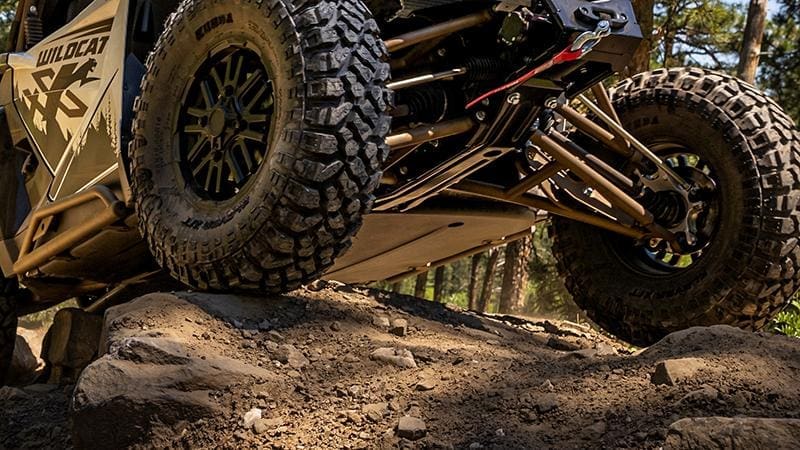

OFF-ROAD RACING INSPIRED SUSPENSION SYSTEM

TAKE ON TOUGH TERRAINS

OFF-ROAD RACING INSPIRED SUSPENSION SYSTEM

The Wildcat XX Black Hills Edition utilizes a suspension system built specifically to dominate uneven terrain. With unequal length A-Arms that neutralize camber, this side-by-side is able to gain more traction and stabilize easier through tough turns and tougher trails.

SEE MORE >

SMOOTH POWER DELIVERY

ADAPT CVT CLUTCH

For enhanced power delivery, the Wildcat XX Black Hills Edition uses the exclusive ADAPT CVT clutch system. The Drive and Driven clutches are lighter-weight and employ an advanced idler system to maintain constant belt tension, which lengthens belt life, minimizes wear, and maximizes throttle response.

WATCH VIDEO >

ELIMINATE BUMPS

PREMIUM FOX 2.5 PODIUM QS3 SHOCKS WITH BOTTOM-OUT CONTROL

With the Wildcat XX Black Hills Edition, you won’t have to compromise between shocks that can absorb big bumps and shocks that offer a more comfortable ride- we gave the side-by-side both. A three-position shock dial control lets you switch from soft, medium, and firm settings depending on the terrain, and with bottom-out control, you’ll get an extra 3,000 lbs of damping force when you hit bumps in the trail.

RIDE WITH FRIENDS

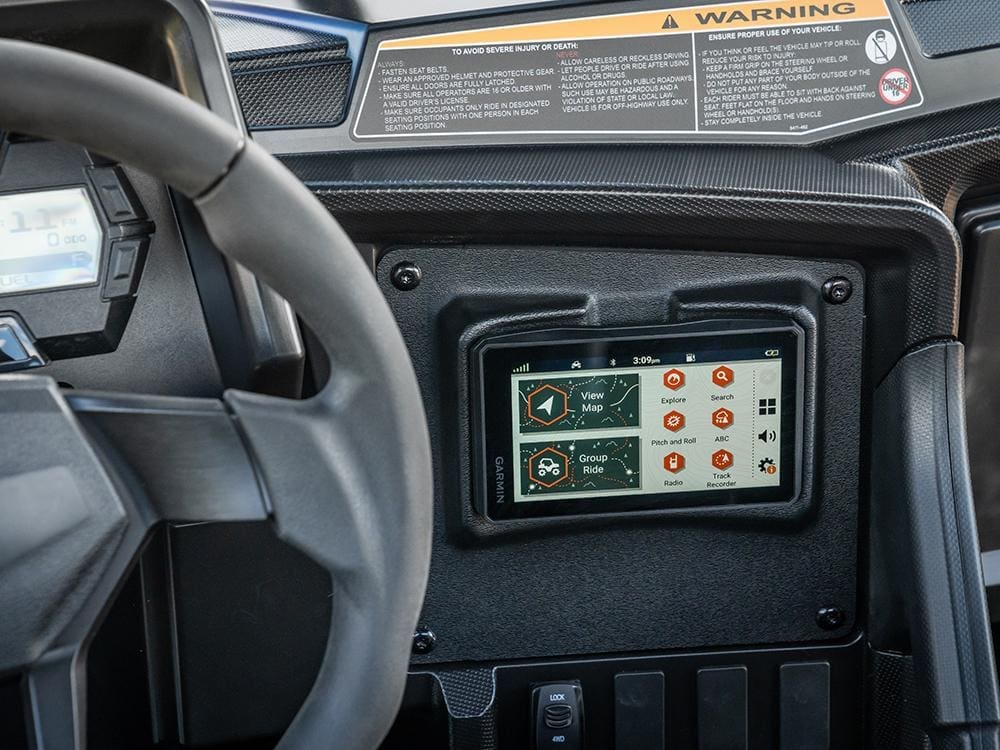

GARMIN TREAD POWERSPORT NAVIGATOR

Enhance your ride with the dash-mounted Garmin Tread Off Road GPS. Garmin is an absolute necessity for any group ride, letting you view your routes, music and group members’ locations easily. The Garmin Tread fits seamlessly and comes factory installed on the Wildcat XX Black Hills Edition, so you can get out there and get started right away.

WATCH VIDEO >

ADAPTABLE CONTROL

SHIFT ON-THE-FLY 4WD WITH LOCKING FRONT DIFFERENTIAL

With quick and easy 2/4-Wheel Drive selectability, your Wildcat XX Black Hills Edition can shift on-the-fly between 2WD and 4WD depending on what terrain you’re ready to tackle. If you need even more traction, the ALL-NEW locking front differential exclusive to the Wildcat XX Black Hills Edition puts maximum torque to all four wheels. With this epic side-by-side built for the tricky trails, you’ll be more in control of your ride than ever before.

BORN TO CLIMB

ALL-NEW LOWER GEAR RATIO TRANSAXLE

The Wildcat XX Black Hills Edition is built with an all-new lower gear ratio transaxle, designed specifically considering the tough trails you’ll encounter. For challenging climbs and crawls, this specialized transaxle increases traction in lower gears, giving you more grip on uneven terrains. This new transaxle has 40% reduced low gear ratio, making it stronger and more durable, so you’ll be able to take on more.

RACE-WORTHY POWER

CLASS-LEADING 130HP ENGINE

Equipped with a class-leading 998cc, three cylinder, 4-stroke EFI engine producing 130HP, the Arctic Cat Black Hills Edition is built to push the limits. The powerful DOHC engine allows for better airflow with fewer obstructions and offers more efficient, consistent performance. With power like this, prepare for exhilaration.

ELEVATE YOUR RIDE

15-INCH GROUND CLEARANCE

With more ground clearance comes more exploration. The elevated 15-inches of ground clearance offered by the Wildcat XX Black Hills Edition keeps you high above the terrain, along with obstacles and debris. This side-by-side leaves those all in the dust.

KEEP COOL

NEW CLUTCH COVER AND COOLING SYSTEM

The Wildcat XX Black Hills Edition is equipped with an all-new clutch cover and cooling system, equipped to seal water and cool the vehicle more efficiently than the standard Wildcat XX. This offers steady airflow throughout the vehicle and keeps the CVT belt cool and dry in the heat, so you can keep riding all day without taking a breather.

SAFETY FIRST

RACE-INSPIRED ROPS

We know that Wildcat riders love exhilarating adventures and tough challenges. To keep things safe, we made sure that the Wildcat XX Black Hills Edition is equipped with a durable, race-inspired roll-over protection system.

BIGGER AND BADDER

32-INCH TIRES

The upgraded 32-inch Kenda Klevers trail tires on the Wildcat XX Black Hills Edition will give you more traction on tough terrains and higher ground clearance. These larger tires will elevate your ride, also absorbing some of the shock from hardcore trail riding.

ENHANCED STRENGTH

DURABLE COMPONENTS

With the Wildcat XX Black Hills Edition, we took obstacles into account and doubled down on durable, tested parts, including double shear steering and suspension components, a forged aluminum front knuckle, oversized front and rear wheel bearings, a hanging rear drivetrain, and removable rear bottom skid plates. All these durable components will bring the most out of every adventure you take.

NO ROUGH RIDES

18 INCHES OF FRONT AND REAR TRAVEL

With 18 inches of front and rear travel, the Wildcat XX Black Hills Edition doesn’t flinch at a bump in the road. This extreme side-by-side is fully equipped to tackle and tame intense terrains.

BLOCK OUT DEBRIS

STANDARD FULL DOORS & OVERSIZED FENDERS

The Wildcat XX Black Hills Edition is equipped with full-length hard doors that keep the cab more isolated from the elements. Plus with oversized fenders over each wheel, you’ll get even more protection from dust and debris.

SPACIOUS AND COMFORTABLE

LARGE CAB

The ultimate chassis control, comes from the best in-cab comfort. The Wildcat XX Black Hill Edition has a large and spacious cab and features bucket seats with upper body supports, 3-point seat belts, adjustable driver seat, infinitely adjustable steering and a digital gauge tilting in unison with the steering wheel.

STORE MORE

CLASS-LEADING 300-LB BED

The Wildcat XX Black Hills Edition has space for any extra gear you’ll need for a full day of riding. The bed has enough room to carry a 32-inch spare tire or up to 300-lbs. of gear.

BE PREPARED

TRAILSIDE KIT

The Wildcat XX Black Hills Edition comes with a trailside kit that has emergency gear to get you out of tough spots. It includes a first aid kit, tow straps, jumper cables, ratchet tie downs, an air compressor, a tire patch kit, zip ties, duct tape, and cloth rags.

EASY TO SERVICE

REMOVABLE COMPONENTS

Maintaining your vehicle is simpler than ever. With easily removable components, you can quickly access multiple parts of your Wildcat XX Black Hills Edition for easy serviceabililty without tools.

SEE MORE >

6-Month Warranty

EXTRA PROTECTION

6-MONTH WARRANTY

With 6 months of rock-solid coverage protecting your Wildcat XX Black Hills Edition, you can have peace of mind on and off the trail.



VEHICLE SPECS
ENGINE & DRIVETRAIN
WILDCAT XX BLACK HILLS EDITION
Engine Type Liquid-Cooled, 3 Cylinder
Horsepower 130HP
Displacement 998cc
Drive Train ADAPT CVT
Drive System 2WD / 4WD Electric Actuation, with Selectable Front Diff Lock
Fuel System EFI (Electronic Fuel Injection)
Gear Selection H/L/N/R/P
Front Differential 2WD / 4WD Selectable Locker
Rear Differential Locked
STEERING & SUSPENSION
WILDCAT XX BLACK HILLS EDITION
Steering Electronic Power Steering
Front Suspension Double A-Arm with 18-in. (46 cm) Travel
Rear Suspension Trailing Arm with 18-in. (46 cm) Travel
Shock Absorbers FOX 2.5 PODIUM QS3 with Compression Adjustment (Front) FOX 2.5 PODIUM QS3 with Compression Adjustment and Bottom-Out Control (Rear)
Brake System 4 Wheel Hydraulic Disc, Dual Piston Caliper Front, Single Piston Caliper Rear
Parking Brake Park in Transmission
Front Tires Kenda Klever 32×10 R15
Wheels 15″ Aluminum
PERFORMANCE
WILDCAT XX BLACK HILLS EDITION
Total Capacity 730 lbs (331 kg)
Bed Capacity 300 lbs (136 kg)
ELECTRICAL
WILDCAT XX BLACK HILLS EDITION
Alternator (Electrical Charging System) 470 Watt Stator and 65 Amp Alternator
Accessory Connection System Pre-Wired Connections for up to 8 Accessories (4 Switch & 4 Key-on)
DIMENSIONS
WILDCAT XX BLACK HILLS EDITION
Overall Length 139.2 in (353.5 cm)
Overall Width 64 in. (162.6 cm)
Overall Height 68.5 in. (173.9 cm)
Overall Weight (Dry) 1,918 lbs (869.9 kg)
Wheelbase 95 in. (241.3 cm)
Ground Clearance 16 in. (40.6 cm)
Fuel Capacity 10 gal (37.9 L)
Hitch Not Equipped
Glove Box Capacity 4 gal (15.1 L)
Bed Dimensions (L x W x H) 34 x 32 x 9 in. (86.4 x 81.3 x 22.9 cm)
COLOUR OPTIONS
WILDCAT XX BLACK HILLS EDITION
Standard Colors White
FEATURES
WILDCAT XX BLACK HILLS EDITION
Skid Plate Full Length, 2 Piece
Standard Instrumentation Multifunctional Digital Gauge
Lighting Halogen with LED Accetn, Dual LED Tail Lights
Start Method Electric Start
Seating Stitched, Two-Tone, Contoured Bucket Seats, 3 Point Seat Belts
Storage Components Cargo Bed, Glove Box
Additional Features Standard Full Doors, 4-Point and Click-6 Belt Ready, 40% Reduced Gear Ratio, Color Matched ROPS and Suspension, 4 Spider Front Gear Case, Race-Inspired ROPS with Front and Rear Intrusion Bars
Standard Accessories Front Bumper, 3,500-lb WARN Winch, Rock Sliders, Trail Side Kit, Aluminum Roof, Garmin Tread Powersports Navigator with Long Range Antenna



* Vehicle specifications are subject to change.
