Description
BLAST M
Mid-Sized for More Exploring
Boondocking beginners and experienced riders alike can confidently take on the backcountry with the BLAST® M. This mid-sized mountain sled is nimble and playful for a confidence-inspiring ride.
146″/2.00″ |
Challenger |
Turn-Key Electric |
AMS |
Dynamic Charcoal/Skye Blue |
Track/Lug |
Track Type |
Starter |
Suspension |
Color |
LEARN MORE
PLENTY OF POWER TO PLAY
4000-Series, 2-Stroke EFI Engine
A 397cc single-cylinder 2-stroke engine with 65-class horsepower and Electronic Fuel Injection offers quicker, more responsive power that gives you a smoother take off every time.
LEARN MORE
APROVEN SUSPENSION
Arctic Mountain Suspension
The Arctic Mountain Suspension (AMS) is built specifically to navigate through deep snow. With lightweight spindles and precision engineered suspension geometry designed with mountain riding in mind, AMS optimizes your performance in deep snow.
LEARN MORE
UNPRECEDENTED MANEUVERABILITY
ALPHA ONE Single-Beam Rear Suspension
ALPHA ONE Suspension is the only single-beam rear suspension in the industry, providing enhanced agility on the mountain. The lightweight, single-beam design provides nimble action allowing riders to maneuver the sled and carve tighter circles with less effort than conventional, dual-rail snowmobiles.
SMOOTH POWER DELIVERY
Arctic Drive System
The durable Arctic Drive System has a CVTech Trailbloc drive clutch and CVTech Invance driven clutch to deliver power to the snow. It also provides more low-end power and throttle control, which is needed when navigating deep snow.
LIGHT AND NIMBLE
Mid-Sized Chassis
The mid-sized BLAST chassis is extremely lightweight, making it agile and easy to handle, no matter your skill level. With a lightweight mountain seat and a short tank, this sled makes transferring weight while cornering effortless.
EASIER STEERING
G2 ProClimb Skis
The lightweight G2 ProClimb™ 7-inch Mountain Ski is tapered to stay on top of the snow. The ski works in tandem with the AMS spindles for easier steering and better deep snow performance.
CAPABLE, EFFORTLESS HANDLING
Best-in-Class Power-to-Weight Ratio
This snowmobile is easy to maneuver with plenty of power to rip through the deep snow. The 65+HP-class C-TEC2™, 397cc engine is paired with a lightweight chassis for a best-in-class power-to-weight ratio.
RELIABLE TRACTION
Challenger 146-inch track
The Challenger 146-inch track with 2-inch lug offers the traction needed to conquer varying mountain snow conditions. Its benchmark lug design is versatile for all-around performance and features a saw-tooth lug for additional grip on hard, wind-blown and springtime snow.
GREAT VISIBILITY
Race Height Windshield
The BLAST M features a low-profile, 4-in. race-height windshield. It offers the visibility needed to weave through the trees or size up the next big jump while offering wind protection when you need it.
READY TO GO

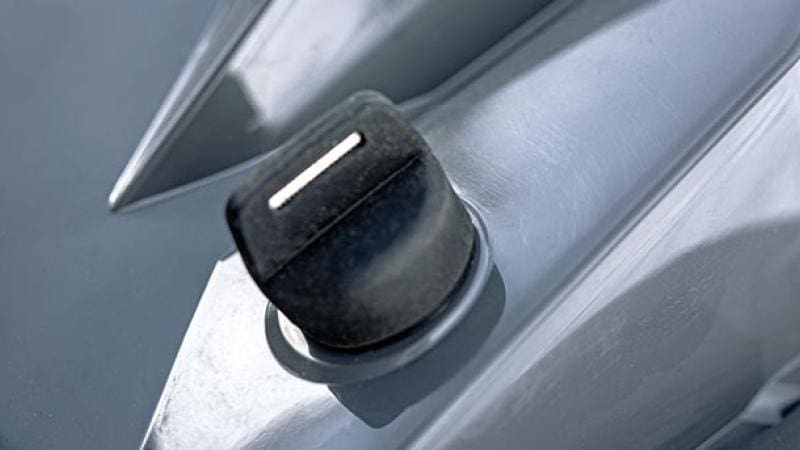

Turn-Key Electric Start
Simply sit down and take off. The BLAST M features a turn-key electric start, so there’s no need to pull-start this mountain sled.
ENGINE
|
BLAST M 4000 |
Engine Type |
4000, 2-Stroke |
Displacement (cc) |
397cc |
Cooling |
Liquid |
Cylinders |
1 |
Bore x Stroke (mm) |
85 x 70 mm |
Lubrication |
Electronic Injection |
Ignition |
Digitally Controlled CDI |
Engine Starter Output |
270 W @ 3000 RPM |
Fuel Delivery |
Electronic Fuel Injected (EFI) |
Exhaust |
APV with tuned pipe, pipe sensor, manifold and stainless steel muffler |
Fuel Capacity |
10.4 gal. |
Oil System Capacity |
3.25 qt. |
Coolant System Capacity |
5.0 qt. |
Minimum Octane |
91 |
POWERTRAIN
|
BLAST M 4000 |
Drive Clutch |
CVTech Trailbloc |
Driven Clutch |
CVTech Invance |
Drive System |
Arctic Drive System |
Brakes |
Stealth Hydraulic Master Cylinder w/lightweight caliper |
Clutch Calibration |
0-5,000 ft. |
Gearing |
19/50 |
Chain Pitch |
90 |
Track Drive Sprocket |
7 Tooth, 2.86 Pitch, Involute |
Reverse |
Push-Button Engine |
SUSPENSION
|
BLAST M 4000 |
Front Suspension |
Arctic Mountain Suspension (AMS) |
Ski Shocks |
Hydraulic Twin Tube |
Sway Bar |
N/A |
Front Travel |
8.3 in. |
Rear Suspension |
ALPHA ONE® Rear Suspension |
Front Track Shock |
Hydraulic Twin Tube |
Rear Track Shock |
Hydraulic Twin Tube |
Rear Travel |
14.75 in. |
DIMENSIONS
|
BLAST M 4000 |
Overall Chassis Length |
128 in. |
Overall Chassis Width |
42.5-44.5 in. |
Overall Chassis Height |
48 in. |
Track Type |
Challenger |
Track Width |
15 in. |
Track Length |
146 in. |
Lug |
2.00 in. |
Pitch |
2.86 in. |
Ski Stance |
35.5-37.5 in. |
Ski Type/Width |
G2 ProClimb- 7 in. |
Runner Type |
Single Runner |
INSTRUMENTATION
|
BLAST M 4000 |
Type of Gauge |
Powersport |
Speedometer |
Digital |
Tachometer |
Digital |
Odometer |
Digital |
Fuel |
Digital |
Oil |
Indicator Light |
Coolant |
Indicator Light |
Clock |
N/A |
Battery Voltage |
N/A |
Altimeter |
N/A |
Hours |
Digital |
FEATURES
|
BLAST M 4000 |
Color |
Skye Blue |
Heat Exchanger |
Front/ Long Tunnel |
Starter |
Electric Turnkey |
Handlebars |
Hooked w/ Grab Handle |
Lighting |
Halogen 1-Bulb |
Seating |
Lightweight Mountain |
Standard Accessories |
Hand & thumb warmers, front/long tunnel heat exchanger, standard brake disc, standard steering, lightweight mountain seat, tether switch |
Windshield |
4 in. Low-Height |
*Vehicle specifications are subject to change.
*Price includes a one year warranty. Price does not include freight or set-up fees and is subject to change.
