Description

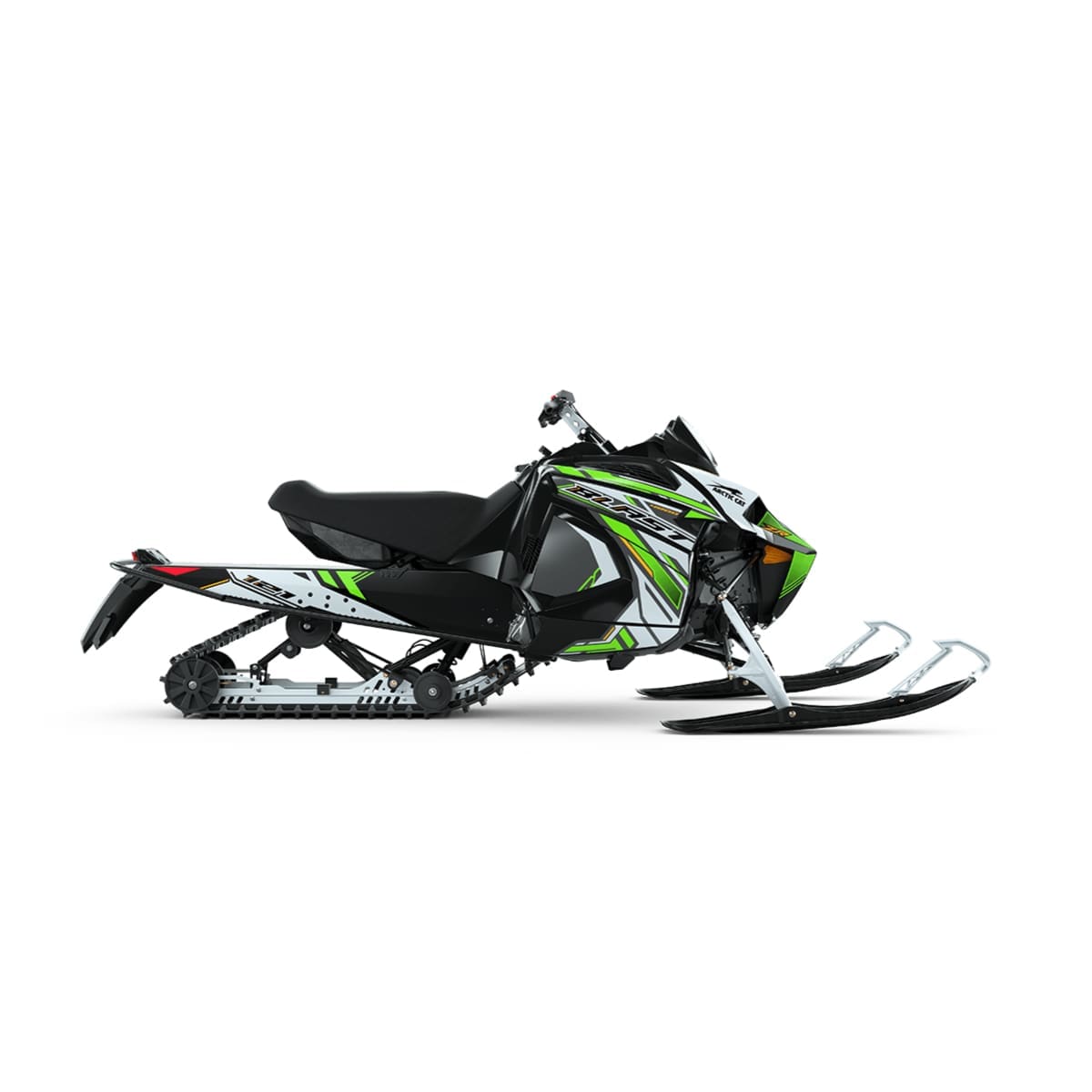

BLAST ZR 4000
The Mid-Sized Trailblazer
With the BLAST® ZR®, you’ll find a responsive ride, easy handling, and an awesome experience overall. This versatile mid-sized sled is perfect for riders of any skill level, offering effortless trail adventures every time.
121″/1.00″ |
Standard |
Turn-Key Electric |
AMS |
Black/Medium Green |
Track/Lug |
Track Type |
Starter |
Suspension |
Color |
LEARN MORE
POWERFUL AND RESPONSIVE
4000-SERIES, 2-STROKE ENGINE
A 397cc single-cylinder 2-stroke engine with 65-class horsepower and electronic fuel injection (EFI) offers quicker, more responsive power that gives you a smoother take off every time.
LEARN MORE
ELIMINATES BUMPY RIDES
SLIDE-RAIL REAR SUSPENSION
The responsive rear suspension uses a full 10.7 inches of travel to absorb any bumps on the trail. With support like this, every ride will be so stable and smooth that you won’t even notice the rough snow.
ENHANCED MANEUVERABILITY
MID-SIZED CHASSIS
There’s nothing better than a snowmobile that’s easy to handle. With its lightweight, mid-sized chassis, the BLAST ZR gives you more control over your ride as you explore the trails.
READY TO GO

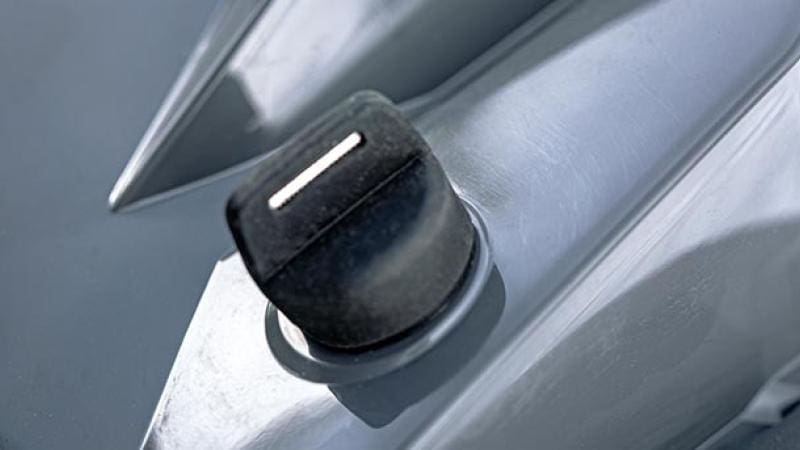

TURN-KEY ELECTRIC START
The BLAST ZR comes with a convenient turn-key electric start and magnetic tether switch, offering a quick start and a safer ride.
CAPABLE, EFFORTLESS HANDLING
BEST-IN-CLASS POWER-TO-WEIGHT RATIO
The BLAST ZR offers a combination of power and maneuverability perfect for on-or off-trail riding. The 65-class horsepower C-TEC2 397cc engine is paired with a lightweight, mid-sized chassis for a best-in-class power-to-weight ratio.
NEXT LEVEL VISIBILITY
RACE-HEIGHT WINDSCREEN
The BLAST ZR is equipped with a low-profile, race-ready, 4-in. windshield. Designed to enhance your visability, it ensures you don’t miss any important trail markers or, more importantly, any of the views.
EASILY ACCESS INFORMATION

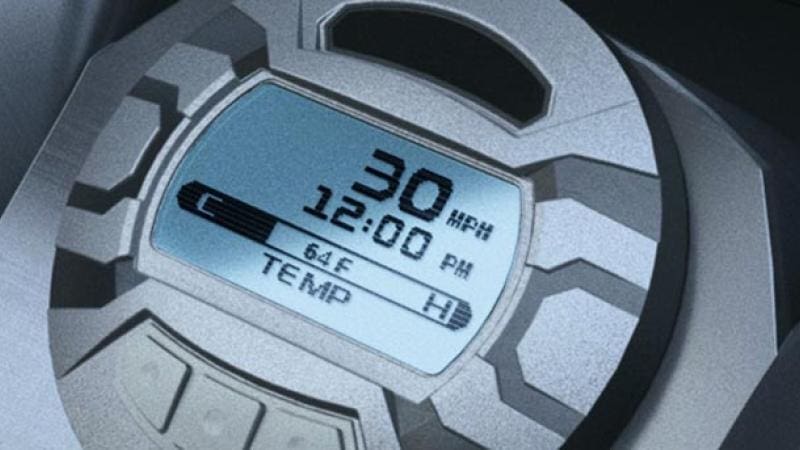

DIGITAL GUAGE
All you need to know is in one place. Be fully aware of everything going on with your vehicle with this easy-to-read, digital display.
ENGINE
|
BLAST ZR 4000 |
Engine Type |
4000 Series, 2-Stroke |
Displacement (cc) |
397cc |
Cooling |
Liquid |
Cylinders |
1 |
Bore x Stroke (mm) |
85 x 70 mm |
Lubrication |
Electronic Injection |
Ignition |
Digitally Controlled CDI |
Engine Starter Output |
270 W @ 3000 RPM |
Fuel Delivery |
Electronic Fuel Injected (EFI) |
Exhaust |
APV with Tuned Pipe, Pipe Sensor, Manifold and Stainless Steel Muffler |
Fuel Capacity |
11.7 gal. |
Oil System Capacity |
3.25 qt. |
Coolant System Capacity |
4.6 qt. |
Minimum Octane |
91 |
POWERTRAIN
|
BLAST ZR 4000 |
Drive Clutch |
CVTech Trailbloc |
Driven Clutch |
CVTech Invance |
Drive System |
Arctic Drive System |
Brakes |
Stealth Hydraulic Master Cylinder w/ Lightweight Caliper |
Clutch Calibration |
0-5,000 ft. |
Gearing |
19/50 |
Chain Pitch |
90 |
Track Drive Sprocket |
9 Tooth, 2.52 pitch, Involute |
Reverse |
Push-Button Engine |
SUSPENSION
|
BLAST ZR 4000 |
Front Suspension |
Arctic Mountain Suspension (AMS) |
Ski Shocks |
Hydraulic Twin Tube |
Sway Bar |
N/A |
Front Travel |
7.2 in. |
Rear Suspension |
Slide-Rail, Dual Shock and Adjustable Torsion Springs |
Front Track Shock |
Hydraulic Twin Tube |
Rear Track Shock |
Hydraulic Twin Tube |
Rear Travel |
10.7 in. |
DIMENSIONS
|
BLAST ZR 4000 |
Overall Chassis Length |
115 in. |
Overall Chassis Width |
44-45 in. |
Overall Chassis Height |
45 in. |
Track Type |
Standard |
Track Width |
14 in. |
Track Length |
121 in. |
Lug |
1 in. |
Pitch |
2.52 in. |
Ski Stance |
37.5-38.5 Adjustable |
Ski Type/Width |
Trail- 6 in. |
Runner Type |
Twin Split |
INSTRUMENTATION
|
BLAST ZR 4000 |
Type of Gauge |
Powersport |
Speedometer |
Digital |
Tachometer |
Digital |
Odometer |
Digital |
Fuel |
Digital |
Oil |
Indicator Light |
Coolant |
Indicator Light |
Clock |
N/A |
Battery Voltage |
N/A |
Altimeter |
N/A |
Hours |
Digital |
FEATURES
|
BLAST ZR 4000 |
Color |
Black/Medium Green |
Heat Exchanger |
Front/Long Tunnel |
Starter |
Turnkey Electric Start |
Handlebars |
Hooked |
Lighting |
Halogen 1-Bulb |
Seating |
Mid-Size |
Standard Accessories |
Hand & thumb warmers, front/long tunnel heat exchanger, standard brake disc, standard steering, mid-size seat, tether switch |
Windshield |
4 in. Low-Height |
*Vehicle specifications are subject to change.
