Description
M 600 ALPHA ONE
Re-Inventing Mountain Riding
Mountain riding just got a lot more interesting. The Arctic Cat M 600 ALPHA ONE will revolutionize how you explore the backcountry with the groundbreaking CATALYST platform.
8 AVAILABLE / CUSTOMIZE YOUR SLED
146″/2.00″
154″/2.60″
154″/3.00″ |
PowerClaw |
Push Button Electric
Manual |
AMS |
Black or Star White |
Track/Lug |
Track Type |
Starter |
Suspension |
Color |
LEARN MORE
PEAK PERFORMANCE UNLOCKED
CATALYST Chassis
The revolutionary CATALYST platform has been built from the ground up to optimize every aspect of your ride, so much so that you’ll feel at one with the sled. With enhanced ergonomics, a lower center of gravity, our exclusive laydown engine design, specially calibrated suspension and more, this changes everything.
LEARN MORE
LIGHTWEIGHT, YET POWERFUL
600-Series C-TEC2 Engine
This robust, yet lightweight 599cc, 125-HP C-TEC2™ engine with Dual-Stage Injection (DSI) offers more than enough power to carve up the backcountry, while keeping the sled feeling weightless.
LEARN MORE
UNMATCHED CONTROL

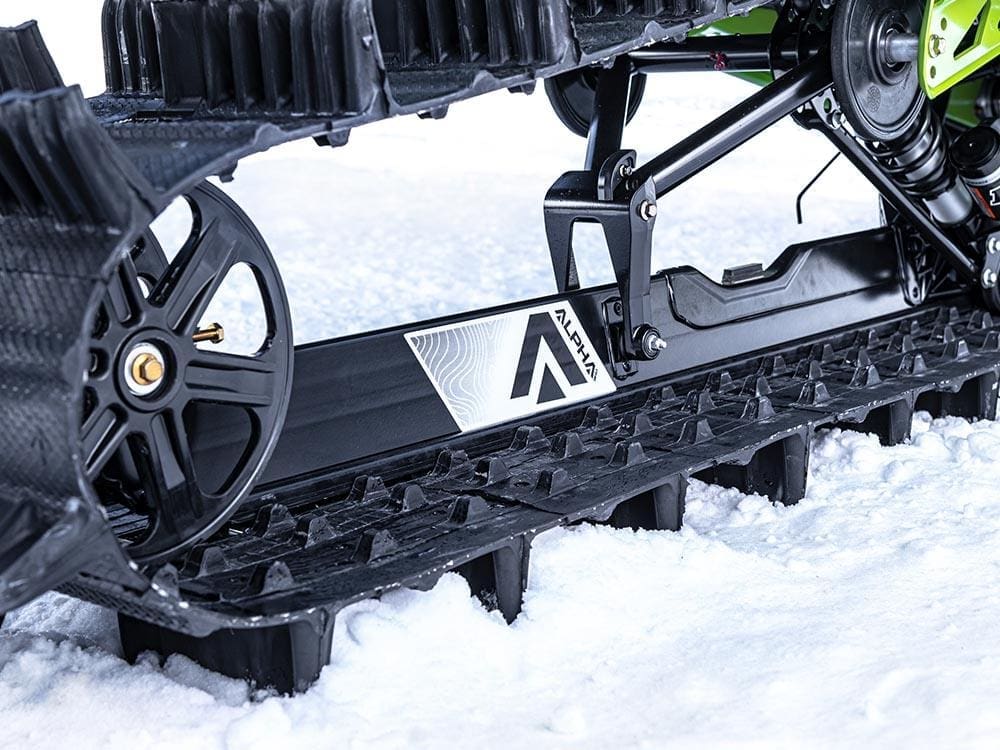

ALPHA ONE Single-Beam Rear Suspension
Arctic Cat’s revolutionary single-beam rear suspension changes the game for mountain snowmobiles. The unique monorail design sheds snow to keep your sled light and equalizes floatation across the width of the track. ALPHA ONE offers enhanced maneuverability, giving you tighter turns than ever before.
LEARN MORE
OPTIMIZED FOR DEEP SNOW
AWS 36 Front Suspension
The AWS 36 Front Suspension was designed specifically with the M 600 in mind. With lightweight spindles and precision engineered geometry, this suspension system optimizes your performance in deep snow.
LEARN MORE
EFFORTLESS SUPPORT
IFP Shocks
You’ll feel the difference in every ride with premium, internal floating piston (IFP) shocks. These shocks will dampen the roughest terrain and offer increased durability, allowing you to maximize your deep snow performance.
QUICKLY CONNECT
ATACH 4-Point Latching System
Adding accessories to your sled is a snap with this all-new 4-point latching system. You can install and remove accessories in seconds, so no matter where you are, you can customize your sled with ease.
LEARN MORE
SMOOTH POWER DELIVERY

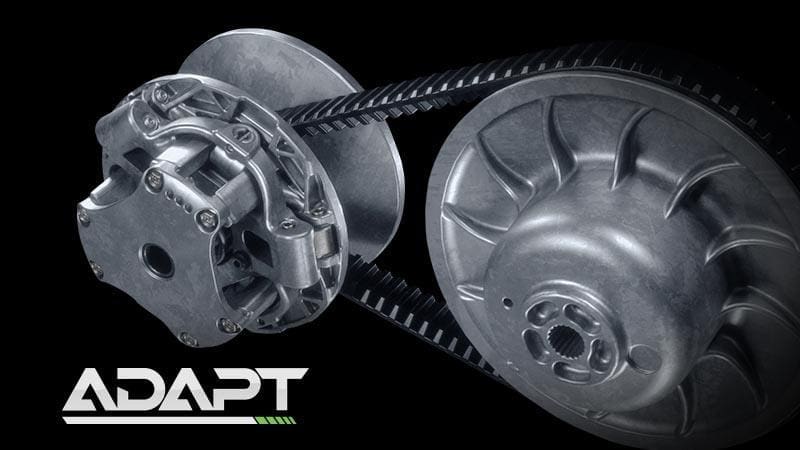

ADAPT CVT System
With its lightweight, narrow design that increases performance and belt life, as well as the industry’s only self-adjusting clutch, the ADAPT™ CVT system provides better throttle response, smoother power delivery and a ride like no other.
RIDE WITH CONFIDENCE
Redesigned Running Boards
With the industry’s first low thermal conductive running boards, snow build-up is a thing of the past. These newly redesigned running boards prevent snow from sticking to minimize additional weight and improve durability.
UNPRECEDENTED TRACTION
Power Claw Track
Unlock the backcountry with Power Claw™, a lightweight track that delivers the ultimate deep snow traction and performance. The staggered, forward curving paddle tower design won’t fold over, allowing you to float over the deepest snow. Available in 146-in and 154-in, and with 2.6-in or 3.0-in lugs.
Asymmetrical LED Headlight
Asymmetrical LED Headlight
A premium LED headlight is crucial to optimize your visibility. Equipped with both high and low-beams, this headlight casts an LED light pattern with great range and width. Plus, with it’s unique asymmetrical design, everyone will know that you’re on an Arctic Cat.
ENGINE
|
M 600 ALPHA ONE |
Engine Type |
600, 2-Stroke |
Displacement (cc) |
599cc |
Cooling |
Liquid |
Cylinders |
2 |
Bore x Stroke (mm) |
73.8 x 70 mm |
Lubrication |
Electronic Injection |
Ignition |
Digitally Controlled CDI |
Engine Starter Output |
270 W @ 3000 RPM |
Fuel Delivery |
Dual Stage Injection |
Exhaust |
APV with tuned pipe, pipe sensor, manifold and stainless steel muffler |
Fuel Capacity |
10.4 gal. |
Oil System Capacity |
3.0 qt. |
Coolant System Capacity |
4.2 qt. |
Minimum Octane |
91 |
POWERTRAIN
|
M 600 ALPHA ONE |
Drive Clutch |
ADAPT |
Driven Clutch |
ADAPT |
Drive System |
AC M Belt Drive |
Brakes |
Stealth Hydraulic Master Cylinder |
Clutch Calibration |
6,000-8,000 ft. |
Gearing |
24/63 |
Chain Pitch |
Belt |
Track Drive Sprocket |
9 Tooth, 2.86 Pitch, Exvolute or 7 Tooth, 3.50 Pitch, Exvolute |
Reverse |
Push-Button Engine |
SUSPENSION
|
M 600 ALPHA ONE |
Front Suspension |
Arctic Wishbone Suspension 36 |
Ski Shocks |
Arctic Cat IFP 1.5 |
Sway Bar |
N/A |
Front Travel |
7.6 in. |
Rear Suspension |
ALPHA ONE Rear Suspension |
Front Track Shock |
Arctic Cat IFP 1.5 |
Rear Track Shock |
Arctic Cat IFP 1.5 |
Rear Travel |
13.5 in. |
DIMENSIONS
|
M 600 ALPHA ONE |
Overall Chassis Length |
122 in. or 126.5 in. |
Overall Chassis Width |
42.5-44.5 in. |
Overall Chassis Height |
50 in. |
Track Type |
Power Claw |
Track Width |
15 in. |
Track Length |
146 in. or 154 in. |
Lug |
2.60 in. or 3.00 in. |
Pitch |
2.86 in. or 3.50 in. |
Ski Stance |
35-37 in. Adjustable |
Ski Type/Width |
G2 ProClimb- 7 in. |
Runner Type |
Single Runner w/ Carbide |
INSTRUMENTATION
|
M 600 ALPHA ONE |
Type of Gauge |
Sport |
Speedometer |
Digital |
Tachometer |
Digital |
Odometer |
Digital |
Fuel |
Digital |
Oil |
LCD Icon |
Coolant |
Digital Bar Graph |
Clock |
N/A |
Battery Voltage |
N/A |
Altimeter |
N/A |
Hours |
Digital |
FEATURES
|
M 600 ALPHA ONE |
Color |
Star White or Black |
Heat Exchanger |
Front/ Long Tunnel |
Starter |
Manual or Electric Push-Button |
Handlebars |
Hooked w/ Grab Handle |
Lighting |
LED |
Seating |
Mountain |
Standard Accessories |
MTN Storage Bag, 12V Outlet, Hand & Thumb Warmer, Ice Scratcher, Lightweight Mountain Brake Disc, Vertical Steering, Tether Switch |
Windshield |
N/A |
*Vehicle specifications are subject to change.
*Price includes a one year warranty. Price does not include freight or set-up fees and is subject to change.
