Description

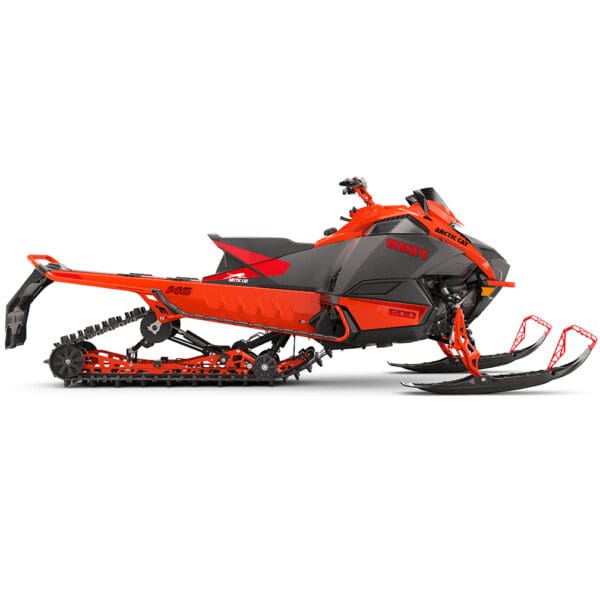

RIOT 600 WITH ATAC
Built to Handle It All
Why choose between the thrills of on-trail riding and the adventure of venturing into the deep snow when you can have both? Riot blends trail and backcountry performance seamlessly for the ultimate adaptable ride.
146″/1.75″
146″/1.60″ |
Hurricane
Cobra |
Push Button Electric |
AWS |
Black
Sunset Orange |
Track/Lug |
Track Type |
Starter |
Suspension |
Color |
LEARN MORE
PEAK PERFORMANCE UNLOCKED
CATALYST Chassis
The revolutionary CATALYST platform has been built from the ground up to optimize every aspect of your ride, so much so that you’ll feel like you’re one with your sled. With enhanced ergonomics, a lower center of gravity, our exclusive laydown engine design, specially calibrated suspension and more, this changes everything.
LEARN MORE
VERSATILE SUSPENSION

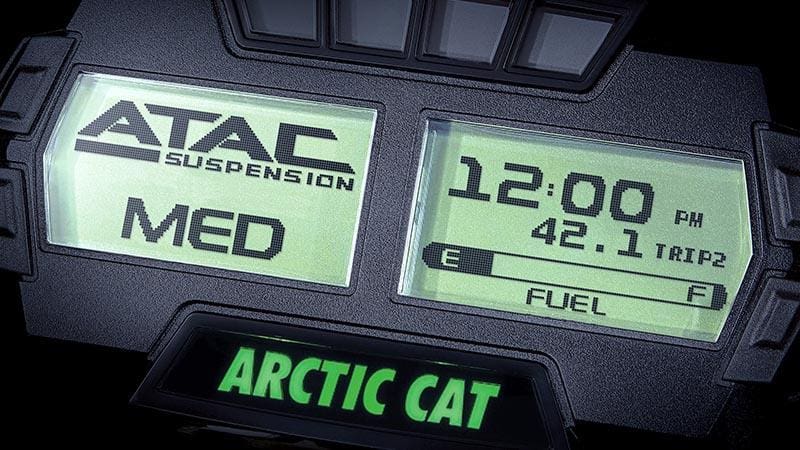

ATAC® Adjustable On-the-Fly Suspension
The ATAC® Adjustable On-the-Fly Suspension immediately adjusts the FOX® ZERO iQS shocks with the push of a button to navigate changing snow conditions. Choose between two rider profiles, three firmness settings and engage lockout mode to ride your way.
SMOOTH POWER DELIVERY
ADAPT™ CVT
The lightweight, durable ADAPT™ CVT System is the industry’s only self-adjusting clutch. ADAPT has an idler bearing that keeps belt temperature down, helping belts stay tighter and giving you a smoother takeoff and consistent power delivery at slow speeds.
WATCH VIDEO
QUICKLY CONNECT
ATACH 4-Point Latching System
Adding accessories to your sled is a snap with this all new 4-point latching system. You can install and remove accessories in seconds, so no matter where you are, you can customize your sled with ease.
LEARN MORE
PLAYFUL COMFORT
CROSS-ACTION Rear Suspension
The uncoupled CROSS-ACTION rear suspension provides unparalleled agility from powder to hardpack. The design enables the front and rear halves of the suspension to move independently, so riders enjoy excellent cornering and bump absorption on the trail, as well as off-trail weight transfer.
LEARN MORE
LIGHTWEIGHT, YET POWERFUL
600-Series C-TEC2 Engine
This robust, yet lightweight 599cc, 125-HP C-TEC2™ engine with Dual-Stage Injection (DSI) offers more than enough power to carve up the backcountry or conquer the trails, while keeping the sled feeling weightless.
LEARN MORE
BRIGHTEN ANY RIDE
ASYMMETRICAL LED HEADLIGHT
A premium LED headlight is crucial to optimize your visibility. Equipped with both high and low beams, this headlight casts an LED light pattern with great range and width. Plus, with it’s unique asymmetrical design, everyone will know that you’re on an Arctic Cat.
RIDE BOLDLY
Redesigned Running Boards
With the industry’s first low thermal conductive running boards, snow buildup is a thing of the past. These newly redesigned running boards prevent snow from sticking to minimize additional weight and improve durability.
CONFIDENCE-INSPIRING HANDLING
AWS 39 Front Suspension
The AWS 39 Front Suspension is engineered specifically to compliment the Riot 600. With ratio steering to reduce rider effort, you’ll experience more control.
READY TO GO
Electric Start
The convenience of electric start is just one of the countless things that sets the Riot apart. With just the push of a handlebar-mounted button you’ll be up and moving.
ENGINE
|
RIOT 600 WITH ATAC |
Engine Type |
600, 2-Stroke |
Displacement (cc) |
599cc |
Cooling |
Liquid |
Cylinders |
2 |
Bore x Stroke (mm) |
73.8 x 70 mm |
Lubrication |
Electronic Injection |
Ignition |
Digitally Controlled CDI |
Engine Starter Output |
270 W @ 3000 RPM |
Fuel Delivery |
Dual Stage Injection |
Exhaust |
APV w/ Tuned Pipe, Pipe Sensor and Stainless Steel Manifold and Muffler |
Fuel Capacity |
10.4 gal |
Oil System Capacity |
3.0 qt. |
Coolant System Capacity |
5.4 qt. |
Minimum Octane |
91 |
POWERTRAIN
|
RIOT 600 WITH ATAC |
Drive Clutch |
ADAPT |
Driven Clutch |
ADAPT |
Drive System |
AC Trail Belt Drive |
Brakes |
Stealth Hydraulic Master Cylinder |
Clutch Calibration |
0-5,000 ft. |
Gearing |
27/60 |
Chain Pitch |
Belt |
Track Drive Sprocket |
9 Tooth, Exvolute |
Reverse |
Push-Button Engine |
SUSPENSION
|
RIOT 600 WITH ATAC |
Front Suspension |
Arctic Wishbone Suspension 39 |
Ski Shocks |
FOX 1.5 ZERO iQS |
Sway Bar |
Standard |
Front Travel |
7.5 in. |
Rear Suspension |
CROSS-ACTION w/ 3-Wheel Rear Axle Assembly, Torque-Sensing Link Rear Arm, Adjustable Torsion Springs, and ATAC System |
Front Track Shock |
Arctic Cat IFP 1.5 |
Rear Track Shock |
FOX 2.0 ZERO iQS |
Rear Travel |
13.5 in. |
DIMENSIONS
|
RIOT 600 WITH ATAC |
Overall Chassis Length |
130.5 in. |
Overall Chassis Width |
48-49 in. |
Overall Chassis Height |
49 in. |
Track Type |
Cobra or Hurricane |
Track Width |
15 in. |
Track Length |
146 in. |
Lug |
1.6 in. or 1.75 in. |
Pitch |
2.86 in. |
Ski Stance |
38-40 in. Adjustable |
Ski Type/Width |
G2 ProClimb- 7 in. |
Runner Type |
Single Runner w/ Carbide |
INSTRUMENTATION
|
RIOT 600 WITH ATAC |
Type of Gauge |
Sport |
Speedometer |
Digital |
Tachometer |
Digital |
Odometer |
Digital |
Fuel |
Digital |
Oil |
Indicator Light |
Coolant |
Digital Bar Graph |
Clock |
N/A |
Battery Voltage |
N/A |
Altimeter |
N/A |
Hours |
Digital |
FEATURES
|
RIOT 600 WITH ATAC |
Color |
Sunset Orange or Black |
Heat Exchanger |
Front/Long Tunnel |
Starter |
Electric Push Button |
Handlebars |
Hooked |
Lighting |
LED |
Seating |
Trail |
Storage Components |
|
Standard Accessories |
Sway bar, 12v outlet, sport front bumper, goggle holder, hand & thumb warmers, front/long tunnel heat exchanger, ice scratchers, standard brake disc, standard steering, ATACH 4-point latching system, trail seat, tether switch, visor plug-ins |
Windshield |
6-in. Low-Height |
*Vehicle specifications are subject to change.
*Price includes a one year warranty. Price does not include freight or set-up fees and is subject to change.
