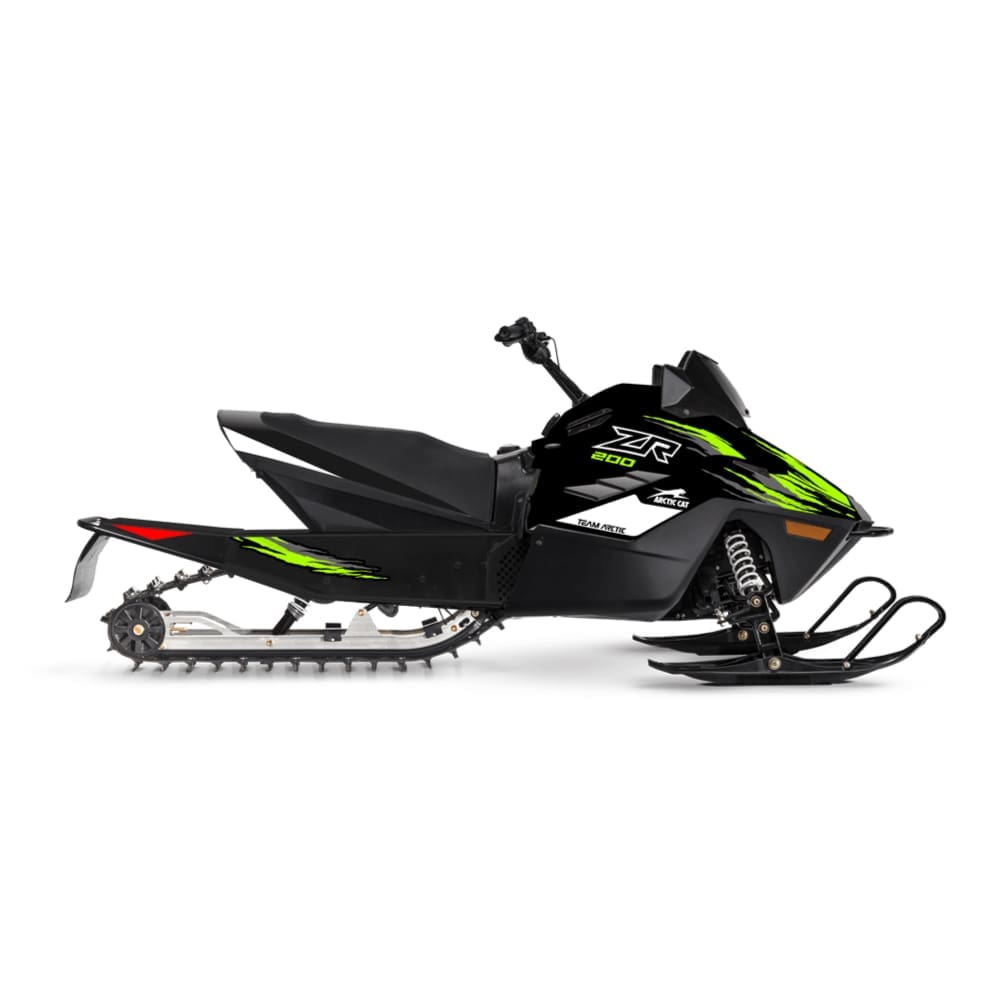

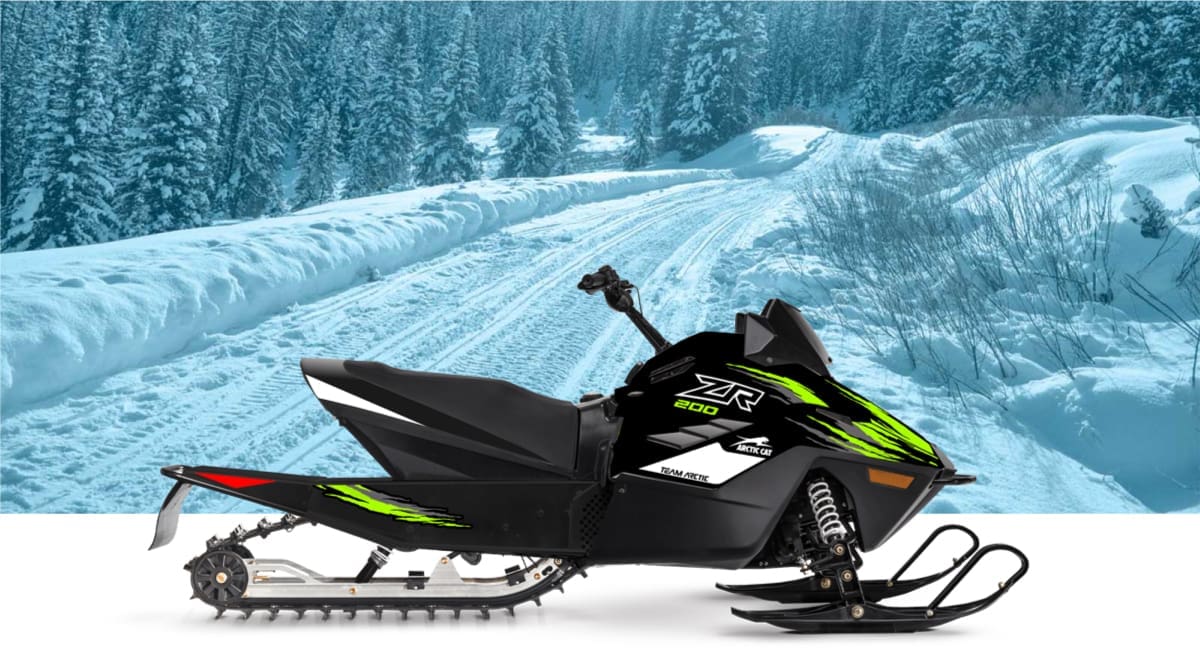

ZR 200
The Ultimate Ride for Young Trailblazers
We won’t let size stop us from bringing the thrill of snowmobiling to all ages. The ZR® 200 is the ultimate SSCC trail-certified sled for young riders to explore their passion at your side.
Trail-Certified |
192cc |
Cobra Track |
Slide-Rail |
Turn-Key |
Performance |
4-Stroke Engine |
For Unparalleled Control |
Rear Suspension |
Electric Start |
93″/ 1.00″ |
Cobra |
Turn-Key Electric |
AWS |
Black/Medium Green |
Track/Lug |
Track Type |
Starter |
Suspension |
Color |
LEARN MORE
POWER FOR THE FULL DAY

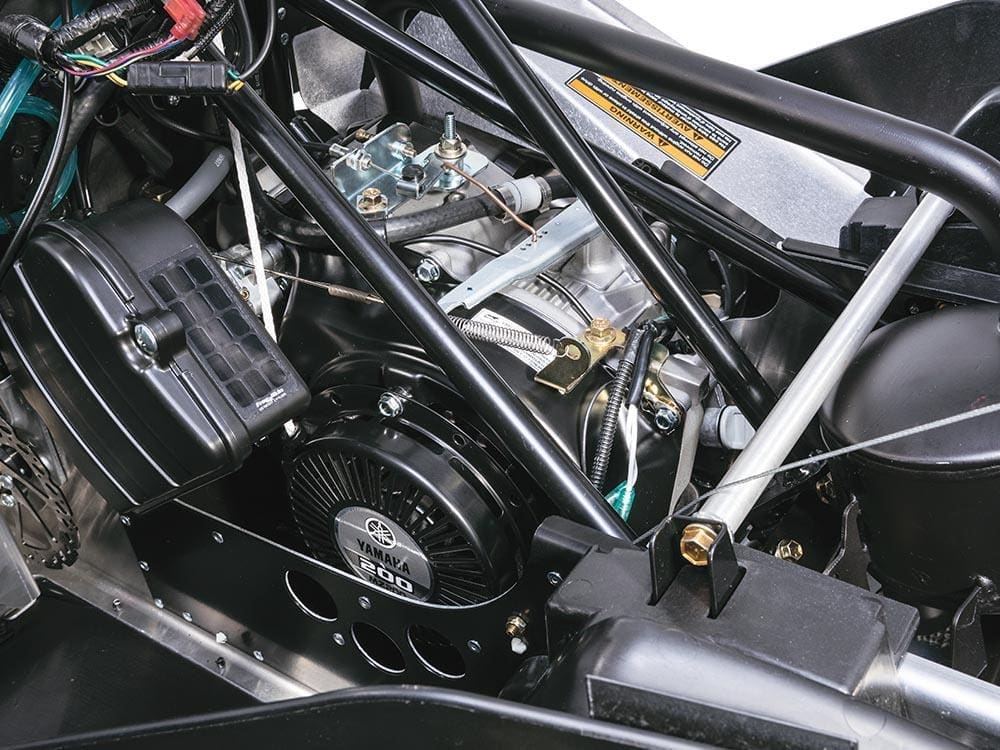

192CC 4-STROKE ENGINE
Run by a 192cc fan-cooled, single-cylinder engine, this sled has enough power to keep up with our full-sized snowmobiles all day.
STICK TOGETHER
SSCC TRAIL-CERTIFIED
The Snowmobile Safety and Certification Committee (SSCC) gives the ZR 200 a full trail certification, letting your young riders explore more by your side.
OPTIMIZED PERFORMANCE

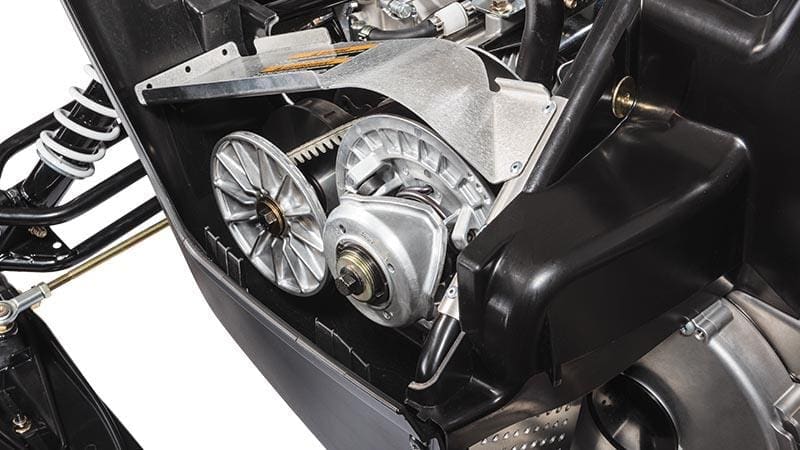

ARCTIC 200 DRIVE SYSTEM
With an RPM-sensing drive clutch, a torque-sensing driven clutch and a belt-drive gearcase, the ZR 200 gives young snowmobilers the power, control and safety they need to develop their skills, confidence, and love for snowmobiling.
MORE SUPPORT
A-ARM FRONT SUSPENSION
The reinforced strength of the A-Arm suspension is a game changer. Offering young riders the same capabilities of a full-size snowmobile, this front suspension offers enhanced support that makes every ride feel effortless, even to a novice rider.
BOOSTED STABILITY

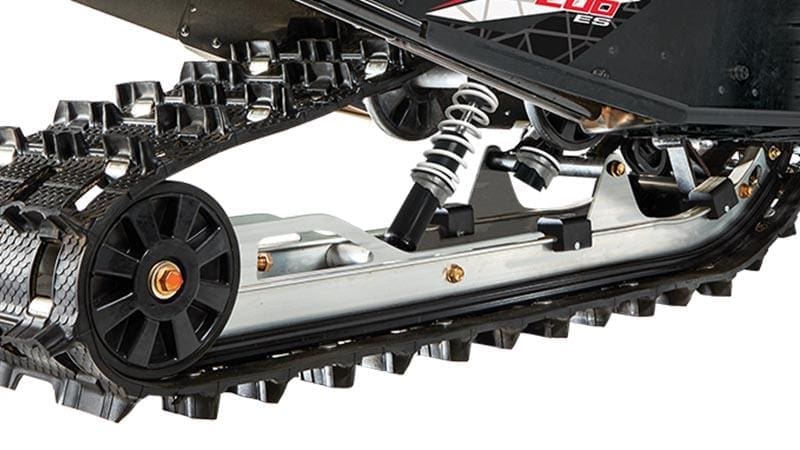

SLIDE-RAIL REAR SUSPENSION
This responsive rear suspension is exactly what young riders need to build confidence in their ability to keep riding. It offers a ride so smooth and stable, they’ll hardly notice any bumps in the trail.
ENHANCED HANDLING
COBRA™ TRACK
The Cobra™ Track enhances any ride. Offering young riders more control, better handling and great traction for any trail condition, this system makes it easier than ever to learn and gain confidence on a snowmobile.
ULTIMATE ADAPTABILITY

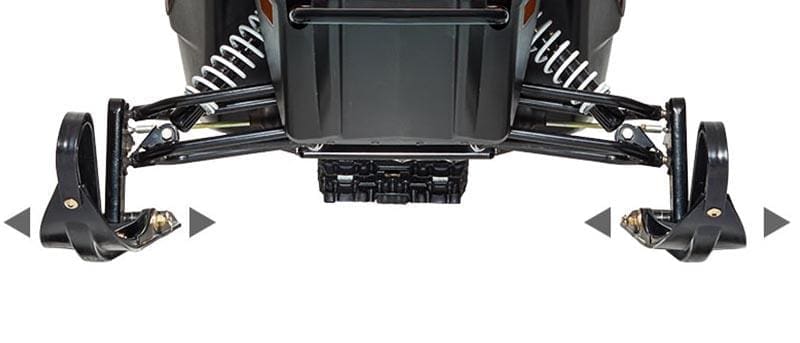

29.5″-31.5″ ADJUSTABLE SKI STANCE
Equipped with a 29.5-31.5-inch adjustable ski stance and deep-keel plastic skis, the ZR 200 gives young riders the adaptability and confidence to rise to any challenge the trail throws at them.
QUICK, EASY START
TURN-KEY ELECTRIC START
Your young rider can get up and moving right away with the convenience and ease of electric start.
ENGINE
|
ZR 200 |
Engine Type |
200, 4-Stroke |
Displacement (cc) |
192cc |
Cooling |
Air |
Cylinders |
1 |
Bore x Stroke (mm) |
70 x 50 mm |
Lubrication |
Oil Sump |
Ignition |
CDI |
Engine Starter Output |
96 W @ 3000 RPM |
Fuel Delivery |
BS-25 Carburetor |
Exhaust |
Muffler |
Fuel Capacity |
2.2 gal. |
Oil System Capacity |
0.6 qt. |
Coolant System Capacity |
N/A |
Minimum Octane |
87 |
POWERTRAIN
|
ZR 200 |
Drive Clutch |
Arctic 5.25 in. Diameter (RPM Sensing) |
Driven Clutch |
6.75 in. Diameter Arctic (Roller Cam) |
Drive System |
Arctic 200 Drive System |
Brakes |
Hydraulic Brake/Disc on Driveshaft |
Clutch Calibration |
0-5,000 ft. |
Gearing |
N/A |
Chain Pitch |
N/A |
Track Drive Sprocket |
5 Tooth, 2.59 Pitch, Exvolute |
Reverse |
N/A |
SUSPENSION
|
ZR 200 |
Front Suspension |
Arctic Wishbone Suspension (AWS) |
Ski Shocks |
Hydraulic Twin Tube |
Sway Bar |
N/A |
Front Travel |
4.5 in. |
Rear Suspension |
Slide-Rail, Adjustable Torsion Spring, Coil-Over Rear Shock |
Front Track Shock |
N/A |
Rear Track Shock |
Hydraulic Twin Tube |
Rear Travel |
8.5 in. |
DIMENSIONS
|
ZR 200 |
Overall Chassis Length |
84 in. |
Overall Chassis Width |
35-37 in. |
Overall Chassis Height |
36 in. |
Track Type |
Cobra™ |
Track Width |
10 in. |
Track Length |
93 in. |
Lug |
1.00 in. |
Pitch |
2.59 in. |
Ski Stance |
29.5-31.5 in. – Adjustable |
Ski Type/Width |
Youth – 5 in. |
Runner Type |
Single Runner |
INSTRUMENTATION
|
ZR 200 |
Type of Gauge |
N/A |
Speedometer |
Accessory |
Tachometer |
N/A |
Odometer |
N/A |
Fuel |
N/A |
Oil |
N/A |
Coolant |
N/A |
Clock |
N/A |
Battery Voltage |
N/A |
Altimeter |
N/A |
Hours |
N/A |
FEATURES
|
ZR 200 |
Color |
Black/ Medium Green |
Heat Exchanger |
N/A |
Starter |
Turnkey Electric Start |
Handlebars |
Straight |
Lighting |
Halogen 1-Bulb |
Seating |
Youth 200 |
|
|
Standard Accessories |
Tether Switch, Standard Steering, Brake Disc, Hand Warmers, Youth Front Bumper |
Windshield |
4 in. Low-Height |
*Vehicle specifications are subject to change.
