Description

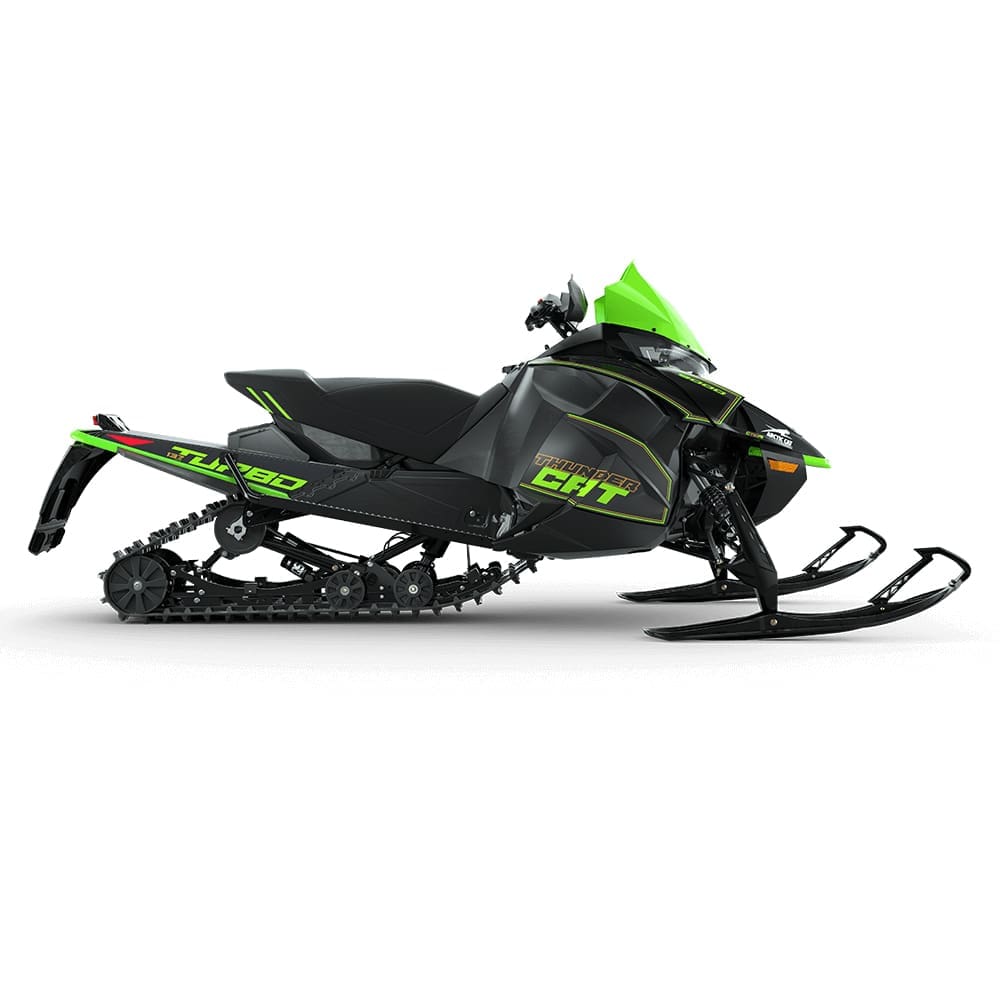

ZR 9000 THUNDERCAT
THE SPEED DEMON’S ULTIMATE RIDE
With the fastest, fiercest snowmobile on the planet, you’ll be untouchable. The ZR® Thundercat is the ultimate ride for the speed demon in your family.
Available Sleds
137″/ 1.25″ | Ripsaw II | Push Button Electric | ARS II w/ ATAC | Black |
Track/Lug | Track Type | Starter | Suspension | Color |
LEGENDARY POWER
9000-SERIES C-TEC4 TURBOCHARGED ENGINE
With a Thundercat, there’s no settling for second best. You need the biggest, most powerful engine on the trail: the 9000-Series C-TEC4™ turbocharged powerhouse. With this much power, no other snowmobile will even come close.
9000-SERIES C-TEC4 TURBORCHARGED ENGINE
ZR Thundercat doesn’t mess around, with our biggest, most powerful engine. The 9000-series C-TEC4 turbocharged three-cylinder engine delivers max horsepower in any conditions.
The ultimate 4-stroke powerhouse, it produces 200HP-class performance at 8750 RPM. This 998cc engine features ultra-quick throttle and turbo response from an intercooled turbo, plus a DOHC design that’s matched with 4-hole fuel injectors to create maximum performance with minimal weight.
You also get engine braking control via an idle speed circuit and engine mapping, lightweight aluminum cylinders, and a press forged crankshaft.
SMOOTH POWER DELIVERY
ADAPT CVT SYSTEM
With its lightweight, narrow design that increases performance and belt life, as well as the industry’s only self-adjusting clutch, the ADAPT™ CVT system provides better throttle response, smoother power delivery, and a ride like no other.
ADAPT CVT SYSTEM
[embedyt] https://www.youtube.com/watch?v=s50VRn5B5z0[/embedyt]CONFIDENCE-INSPIRING CONTROL
ARS™ II FRONT SUSPENSION
This innovative front suspension is built to optimize handling. With increased cornering bite, it’s easier than ever to tame the trails. More control means less fatigue, so you’ll be able to go farther on the Thundercat.
ARS II FRONT SUSPENSION
The next level of Arctic Race Suspension (ARS) is here. ARS II gives you better bite on corners and increased ground clearance to deliver more confidence on- or off-trail. We made the forged aluminum spindles 1.5 inches taller from the ski to the lower arm, and gave it more rigid upper A-Arms. Plus, a revised geometry delivers a new roll-center and adjustable cambers, and a swaybar makes for flatter, more predictable cornering on hard pack trails.
INTUITIVE HANDLING
ELECTRONIC POWER STEERING
With Electronic Power Steering (EPS), this is a next-level experience. Unmatched control, easier turns, and intuitive handling will upgrade your ride more than you could imagine.
NO ROUGH RIDES
SLIDE-ACTION™ REAR SUSPENSION
Rough rides are a thing of the past. With this industry-exclusive design that keeps the front arm engaged while the rear arm compresses, you’ll hardly feel a bump in the trail.
SLIDE-ACTION REAR SUSPENSION
Unlock the true potential of a coupled suspension with our unique SLIDE-ACTION design. The front arm fits into a U-shaped slot that allows 0.5 inches of sliding movement, so the front arm won’t collapse whenever the rear arm compresses. That unique design gives you the full benefit of coupling: controlled ski lift during acceleration and the complete use of the front arm at all times. SLIDE-ACTION suspension also allows a lower and more consistent track tension with its Torque-Sensing Link, plus three-position rear coupling block adjustability, adjustable spring preload and a durable 3-wheel rear axle assembly.
UNMATCHED SUPPORT
FOX® ZERO IQS SHOCKS
Designed for any terrain and any riding style, these premium FOX® ZERO IQS shocks are easily adjusted to fit your needs. With shocks like these, you’ll never go back.
FOX ZERO IQS SHOCKS
No matter your riding style — or what the day brings — FOX ZERO iQS shocks will be ready.
Featuring three compression settings (soft, medium and firm) that can be easily adjusted with a dial mounted on the remote reservoir or with a push of a handlebar-mounted button (on models with ATAC), FOX ZERO iQS shocks are built for changing terrain. Their remote reservoir delivers fade-free runs, while coil-over springs even out the bumpiest rides. Available in 1.5- and 2.0-inch diameters.
READY TO GO
PUSH-BUTTON ELECTRIC START
The convenience of electric start is just one of the many things that sets the Thundercat apart. With just the push of a handlebar-mounted button, you’ll be on your way.
ENHANCED ACCELERATION
RIPSAW II™ TRACK
The Ripsaw’s angled 1.25-in. lugs help the Thundercat grip the trail. The chopped design provides unbelievable levels of handling and acceleration.

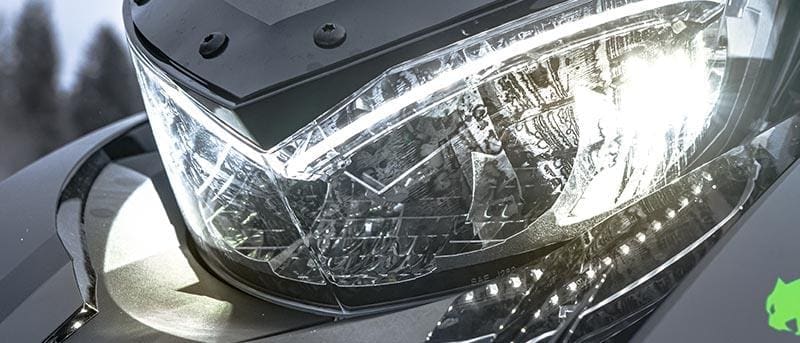

LED HEADLIGHT
LED HEADLIGHT
A premium LED headlight is crucial for those night rides. Equipped with both high and low-beams, the headlight casts an LED light pattern with great range and width.
INSTANT SUSPENSION CONTROL

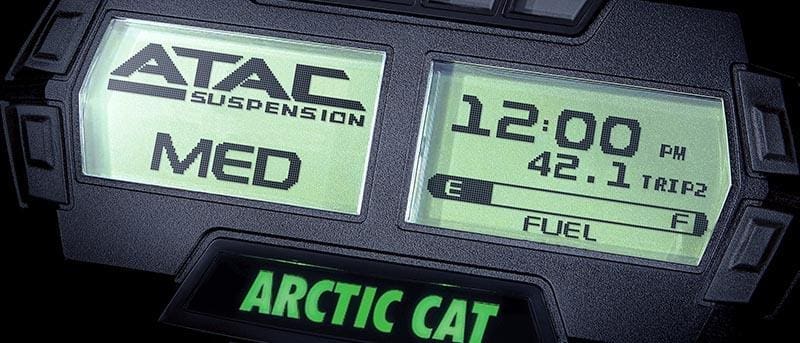

ATAC® ADJUSTABLE ON-THE-FLY SUSPENSION
The ATAC® Adjustable On-the-Fly Suspension immediately adjusts the FOX® ZERO iQS shocks with the push of a button to navigate changing snow conditions. Choose between two rider profiles, three firmness settings and engage lockout mode to ride your way.
VEHICLE SPECS
ZR 9000 THUNDERCAT | ||
---|---|---|
Engine Type | 9000, 4-Stroke | |
Displacement (cc) | 998cc | |
Cooling | Liquid | |
Cylinders | 3 – Turbocharged | |
Bore x Stroke (mm) | 80 x 66.2 mm | |
Lubrication | Dry Sump | |
Ignition | Digital Controlled Coil Induction | |
Engine Starter Output | 545W @ 5000 RPM | |
Fuel Delivery | Electronic Fuel Injected (EFI) | |
Exhaust | Turbocharger with Stainless Steel Muffler | |
Fuel Capacity | 9.9 gal. | |
Oil System Capacity | 3.8 qt. | |
Coolant System Capacity | 5.7 qt. | |
Minimum Octane | 91 |
ZR 9000 THUNDERCAT | ||
---|---|---|
Drive Clutch | ADAPT | |
Driven Clutch | ADAPT | |
Drive System | Arctic Drive System | |
Brakes | Stealth Hydraulic Master Cylinder | |
Clutch Calibration | 0-10,000 ft. | |
Gearing | 24/50 | |
Chain Pitch | 92 | |
Track Drive Sprocket | 9 Tooth, 2.86 Pitch, Exvolute | |
Reverse | Push-Button |
ZR 9000 THUNDERCAT | ||
---|---|---|
Front Suspension | ARS II w/ ATAC | |
Ski Shocks | FOX 1.5 ZERO iQS | |
Sway Bar | Standard | |
Front Travel | 9 in. | |
Rear Suspension | SLIDE-ACTION with 3 wheel rear axle assembly, coupling blocks, Torque-Sensing Link rear arm, adjustable torsion springs, and ATAC Adjustable On-the-Fly Suspension | |
Front Track Shock | Arctic Cat IFP 1.5 | |
Rear Track Shock | FOX 2.0 ZERO iQS | |
Rear Travel | 13.5 in. |
ZR 9000 THUNDERCAT | ||
---|---|---|
Overall Chassis Length | 125 in. | |
Overall Chassis Width | 48-49 in. | |
Overall Chassis Height | 52 in. | |
Track Type | Ripsaw II | |
Track Width | 15 in. | |
Track Length | 137 in. | |
Lug | 1.25 in. | |
Pitch | 2.86 in. | |
Ski Stance | 42-43 in. Adjustable | |
Ski Type/Width | Trail – 6 in. | |
Runner Type | Long dual runner 4-bolt w/carbide |
ZR 9000 THUNDERCAT | ||
---|---|---|
Type of Gauge | Deluxe Digital | |
Speedometer | Digital | |
Tachometer | Digital | |
Odometer | Digital | |
Fuel | Digital | |
Oil | Indicator Light | |
Coolant | Digital/Indicator Light | |
Clock | Digital | |
Battery Voltage | Digital | |
Altimeter | Digital | |
Hours | Digital |
ZR 9000 THUNDERCAT | ||
---|---|---|
Color | Black | |
Heat Exchanger | Front/Long Tunnel | |
Starter | Electric Push Button | |
Handlebars | Hooked | |
Lighting | LED with Accent Light | |
Seating | High Performance | |
Standard Accessories | 12V Outlet, Sport Front Bumper, Goggle Holder, Hand & Thumb Warmer, Team Arctic Handguard, Heated Driver’s Seat, Standard Brake Disc, EPS-Standard Steering, Tether Switch, Tunnel Flare | |
Windshield | 11 in. Mid-Height |
*Vehicle specifications are subject to change.
*Price includes a one year warranty. Price does not include freight or set-up fees and is subject to change.
