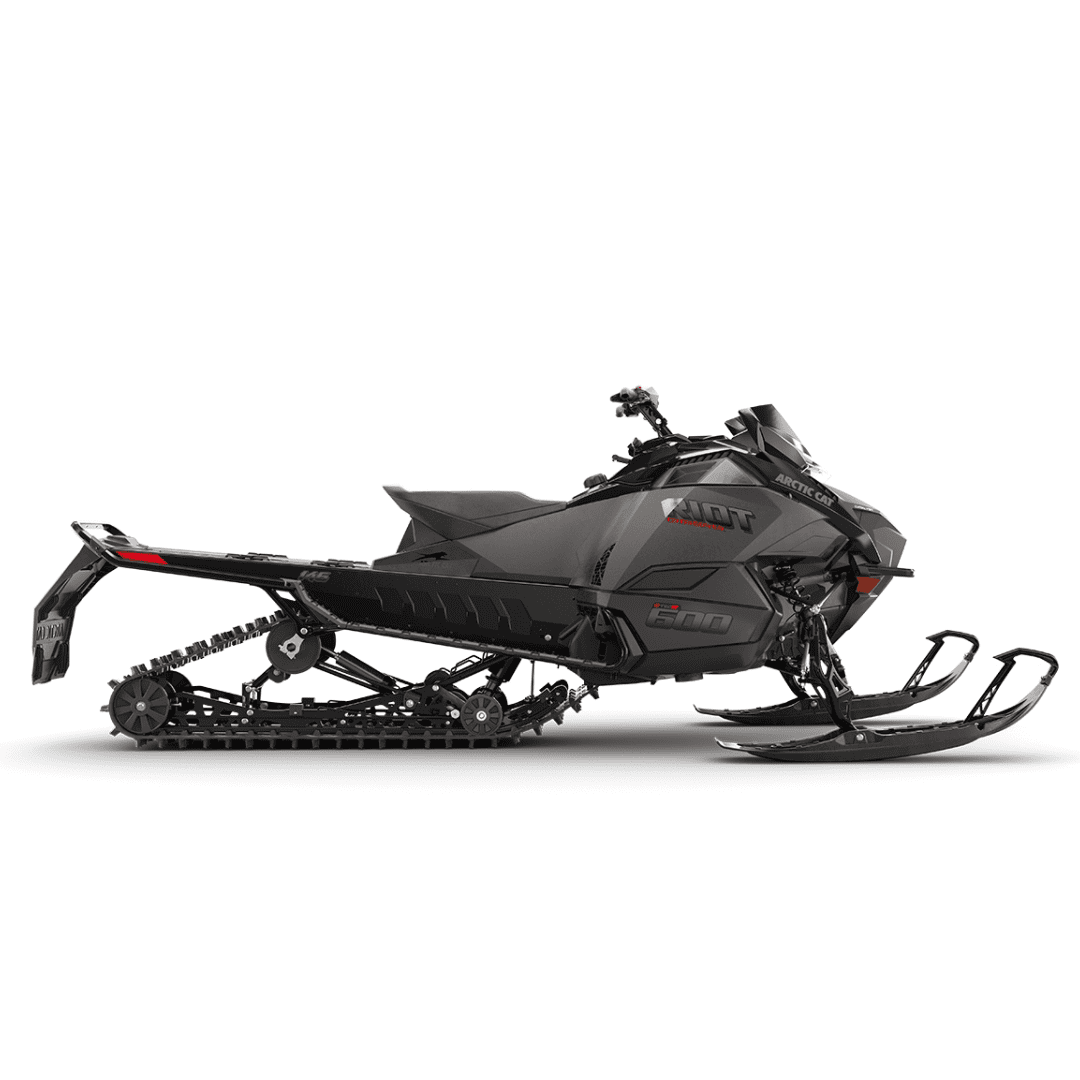

RIOT 600
Built to Handle It All
Why choose between the thrills of on-trail riding and the adventure of venturing into the deep snow when you can have both? Riot blends trail and backcountry performance seamlessly for the ultimate adaptable ride.
146″/1.35″ |
Cobra |
Push Button Electric |
AWS |
Black |
Track/Lug |
Track Type |
Starter |
Suspension |
Color |
LEARN MORE
PEAK PERFORMANCE UNLOCKED
CATALYST Chassis
The revolutionary CATALYST platform has been built from the ground up to optimize every aspect of your ride, so much so that you’ll feel like you’re one with your sled. With enhanced ergonomics, a lower center of gravity, our exclusive laydown engine design, specially calibrated suspension and more, this changes everything.
LEARN MORE
READY TO GO
PUSH-BUTTON ELECTRIC START
The convenience of electric start is just one of the countless things that sets the Riot apart. With just the push of a handlebar-mounted button you’ll be up and moving.It is also equipped with a backup manual starter.
SMOOTH POWER DELIVERY
ADAPT™ CVT
With its lightweight, narrow design that increases performance and belt life, as well as the industry’s only self-adjusting clutch, the ADAPT™ CVT system provides better throttle response, smoother power delivery and a ride like no other.
WATCH VIDEO
CONFIDENCE-INSPIRING HANDLING
AWS 39 FRONT SUSPENSION WITH PROGRESSIVE RATIO STEERING
The AWS 39 Front Suspension is engineered specifically to compliment the Riot 600. With ratio steering to reduce rider effort, you’ll experience more control.
LEARN MORE
PLAYFUL COMFORT
CROSS-ACTION Rear Suspension
The uncoupled CROSS-ACTION rear suspension provides unparalleled agility from powder to hardpack. The design enables the front and rear halves of the suspension to move independently, so riders enjoy excellent cornering and bump absorption on the trail, as well as off-trail weight transfer.
LEARN MORE
LIGHTWEIGHT, YET POWERFUL
600-Series C-TEC2 Engine
This robust, yet lightweight 599cc, 125-HP C-TEC2™ engine with Dual-Stage Injection (DSI) offers more than enough power to carve up the backcountry or conquer the trails, while keeping the sled feeling weightless.
LEARN MORE
EFFORTLESS SUPPORT
IFP SHOCKS
You’ll feel the difference in every ride with premium, internal floating piston (IFP) shocks. These shocks will dampen the toughest terrain and offer increased durability, allowing you to maximize your performance.
INCREASED DURABILITY
ARCTIC CAT TRAIL BELT DRIVE
The CATALYST platform utilizies Arctic Cat’s belt drive system rather than a chain drive. This allows for enahnced durability and fewer parts in the system. The adjustable center distance allows for multiple ratio options and makes servicing simple.
QUICKLY CONNECT
ATACH LATCHING SYSTEM
Adding accessories to your sled is a snap with this 4-point latching system. You can install and remove accessories in seconds, so no matter where you are, you can customize your sled with ease.
LEARN MORE

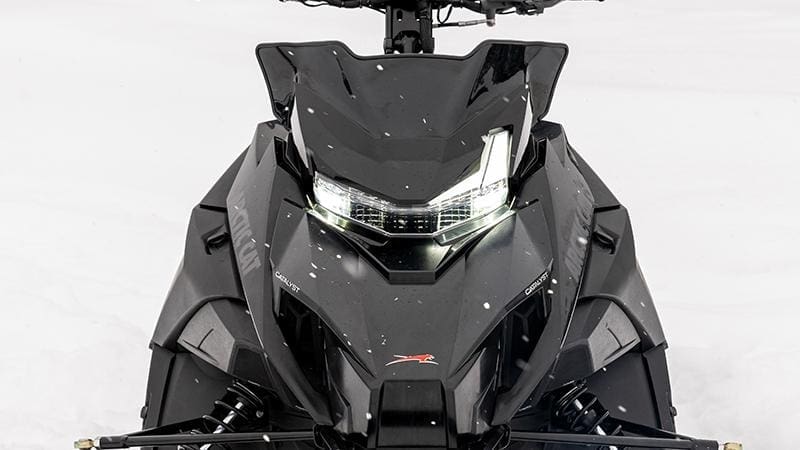

BRIGHTEN ANY RIDE
ASYMMETRICAL LED HEADLIGHT
A premium LED headlight is crucial to optimize your visibility. Equipped with both high and low beams, this headlight casts an LED light pattern with great range and width. Plus, with it’s unique asymmetrical design, everyone will know that you’re on an Arctic Cat.
ENGINE
|
RIOT 600 |
Engine Type |
600, 2-Stroke |
Displacement (cc) |
599cc |
Cooling |
Liquid |
Cylinders |
2 |
Bore x Stroke (mm) |
73.8 x 70 mm |
Lubrication |
Electronic Injection |
Ignition |
Digitally Controlled CDI |
Engine Starter Output |
270 W @ 3000 RPM |
Fuel Delivery |
Dual Stage Injection |
Exhaust |
APV w/ Tuned Pipe, Pipe Sensor and Stainless Steel Manifold and Muffler |
Fuel Capacity |
10.4 gal |
Oil System Capacity |
3.0 qt. |
Coolant System Capacity |
5.4 qt. |
Minimum Octane |
91 |
POWERTRAIN
|
RIOT 600 |
Drive Clutch |
ADAPT |
Driven Clutch |
ADAPT |
Drive System |
AC Trail Belt Drive |
Brakes |
Stealth Hydraulic Master Cylinder |
Clutch Calibration |
0-5,000 ft. |
Gearing |
27/60 |
Chain Pitch |
Belt |
Track Drive Sprocket |
9 Tooth, 2.86 Pitch, Exvolute |
Reverse |
Push-Button Engine |
SUSPENSION
|
RIOT 600 |
Front Suspension |
Arctic Wishbone Suspension 39 |
Ski Shocks |
Arctic Cat IFP 1.5 |
Sway Bar |
Standard |
Front Travel |
7.5 in. |
Rear Suspension |
CROSS-ACTION w/ 3-Wheel Rear Axle Assembly, Torque-Sensing Link Rear Arm, and Adjustable Torsion Springs |
Front Track Shock |
Arctic Cat IFP 1.5 |
Rear Track Shock |
Arctic Cat IFP 2.0 |
Rear Travel |
13.5 in. |
DIMENSIONS
|
RIOT 600 |
Overall Chassis Length |
130.5 in. |
Overall Chassis Width |
48-49 in. |
Overall Chassis Height |
49 in. |
Track Type |
Cobra |
Track Width |
15 in. |
Track Length |
146 in. |
Lug |
1.35 in. |
Pitch |
2.86 in. |
Ski Stance |
38-40 in. Adjustable |
Ski Type/Width |
G2 ProClimb- 7 in. |
Runner Type |
Single Runner w/ Carbide |
INSTRUMENTATION
|
RIOT 600 |
Type of Gauge |
Sport |
Speedometer |
Digital |
Tachometer |
Digital |
Odometer |
Digital |
Fuel |
Digital |
Oil |
LCD Icon |
Coolant |
Digital Bar Graph |
Clock |
N/A |
Battery Voltage |
N/A |
Altimeter |
N/A |
Hours |
Digital |
FEATURES
|
RIOT 600 |
Color |
Black |
Heat Exchanger |
Front/Long Tunnel |
Starter |
Push-Button Electric Start |
Handlebars |
Hooked |
Lighting |
LED |
Seating |
Trail |
Storage Components |
|
Standard Accessories |
12V Outlet, Sport Front Bumper, Integrated Goggle Holder, Hand & Thumb Warmers, Ice Scratchers, Standard Brake Disc, Ratio Steering, ATACH Rear Storage, Tether Switch, Visor Plug-Ins |
Windshield |
5.5 in Low Height |
*Vehicle specifications are subject to change.
