Description

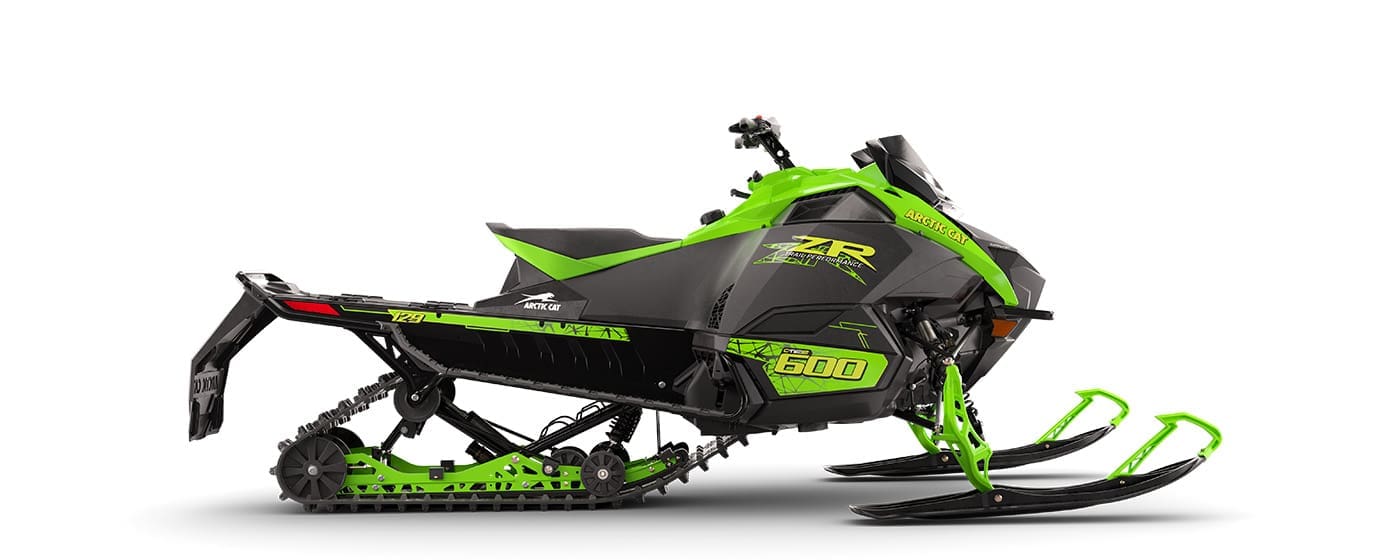

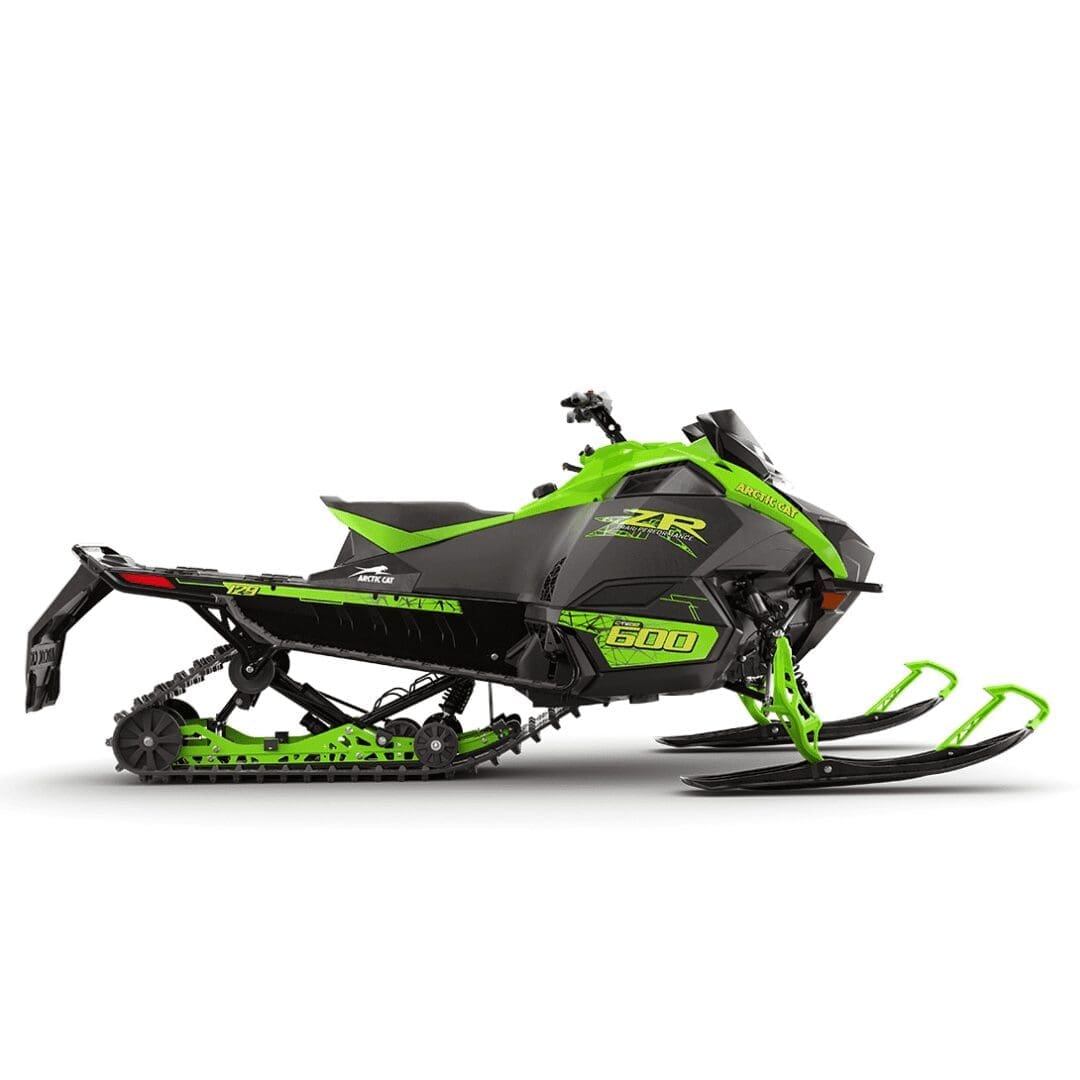

ZR 600 SNO PRO
Ultimate Trail Performance
Whether you live for thrills and adventures or are searching for the perfect view, the ZR is the ultimate sled for trail performance. It’s time for the ride of your life.
129″/1.25″
137″/1.25″ |
Ripsaw
Ripsaw™ II |
Push Button Electric |
AWS |
Medium Green/Black |
Track/Lug |
Track Type |
Starter |
Suspension |
Color |
LEARN MORE
PEAK PERFORMANCE UNLOCKED
CATALYST Chassis
The revolutionary CATALYST platform has been built from the ground up to optimize every aspect of your ride, so much so that you’ll feel like you’re one with your sled. With enhanced ergonomics, a lower center of gravity, our exclusive laydown engine design, specially calibrated suspension and more, this changes everything.
LEARN MORE
READY TO GO
PUSH-BUTTON ELECTRIC START
The convenience of electric start is just one of the countless things that sets the Riot apart. With just the push of a handlebar-mounted button you’ll be up and moving.It is also equipped with a backup manual starter.
SMOOTH POWER DELIVERY
ADAPT™ CVT
With its lightweight, narrow design that increases performance and belt life, as well as the industry’s only self-adjusting clutch, the ADAPT™ CVT system provides better throttle response, smoother power delivery and a ride like no other.
WATCH VIDEO
CONFIDENCE-INSPIRING HANDLING
AWS 42 FRONT SUSPENSION WITH PROGRESSIVE RATIO STEERING
The AWS 42 Front Suspension is engineered specifically to compliment the ZR 600. With ratio steering to reduce rider effort, you’ll experience more control.
LEARN MORE
NO ROUGH RIDES
SLIDE-ACTION™ REAR SUSPENSION
Rough rides are a thing of the past. With this industry-exclusive design that keeps the front arm engaged while the rear arm compresses, you’ll hardly feel a bump in the trail.
LEARN MORE
LIGHTWEIGHT, YET POWERFUL
600-Series C-TEC2 Engine
This robust, yet lightweight 599cc, 125-HP C-TEC2™ engine with Dual-Stage Injection (DSI) offers more than enough power to carve up the backcountry or conquer the trails, while keeping the sled feeling weightless.
LEARN MORE
ULTIMATE ADJUSTABILITY
AC5S SHOCKS
Designed by Arctic Cat, for Arctic Cat, the all new AC5S shocks offer 5 different positions and adjustable spring preload. They are uniquely calibrated for crossover riding and showcase both Arctic Cat’s legacy of durability and its signature style.
INCREASED DURABILITY
ARCTIC CAT TRAIL BELT DRIVE
The CATALYST platform utilizies Arctic Cat’s belt drive system rather than a chain drive. This allows for enahnced durability and fewer parts in the system. The adjustable center distance allows for multiple ratio options and makes servicing simple.
QUICKLY CONNECT
ATACH LATCHING SYSTEM
Adding accessories to your sled is a snap with this 4-point latching system. You can install and remove accessories in seconds, so no matter where you are, you can customize your sled with ease.
LEARN MORE
BRIGHTEN ANY RIDE
ASYMMETRICAL LED HEADLIGHT
A premium LED headlight is crucial to optimize your visibility. Equipped with both high and low beams, this headlight casts an LED light pattern with great range and width. Plus, with it’s unique asymmetrical design, everyone will know that you’re on an Arctic Cat.
ENGINE
|
ZR 600 SNO PRO |
Engine Type |
600, 2-Stroke |
Displacement (cc) |
599cc |
Cooling |
Liquid |
Cylinders |
2 |
Bore x Stroke (mm) |
73.8 x 70 mm |
Lubrication |
Electronic Injection |
Ignition |
Digitally Controlled CDI |
Engine Starter Output |
270 W @ 3000 RPM |
Fuel Delivery |
Dual Stage Injection |
Exhaust |
APV w/ Tuned Pipe, Pipe Sensor and Stainless Steel Manifold and Muffler |
Fuel Capacity |
10.4 gal |
Oil System Capacity |
3.0 qt. |
Coolant System Capacity |
5.3 qt or 5.4 qt |
Minimum Octane |
91 |
POWERTRAIN
|
ZR 600 SNO PRO |
Drive Clutch |
ADAPT |
Driven Clutch |
ADAPT |
Drive System |
AC Trail Belt Drive |
Brakes |
Stealth Hydraulic Master Cylinder |
Clutch Calibration |
0-5,000 ft. |
Gearing |
30/58 |
Chain Pitch |
Belt |
Track Drive Sprocket |
9 Tooth, 2.86 Pitch, Involute |
Reverse |
Push-Button Engine |
SUSPENSION
|
ZR 600 SNO PRO |
Front Suspension |
Arctic Mountain Suspension (AMS) 42 |
Ski Shocks |
AC5S |
Sway Bar |
Standard |
Front Travel |
8.2 in |
Rear Suspension |
SLIDE-ACTION with 3 Wheel Rear Axle Assembly & Adjustable Torsion Springs |
Front Track Shock |
AC5S |
Rear Track Shock |
AC5S |
Rear Travel |
13.5 in. |
DIMENSIONS
|
ZR 600 SNO PRO |
Overall Chassis Length |
118 in or 126 in |
Overall Chassis Width |
48-49 in. |
Overall Chassis Height |
47 in |
Track Type |
Ripsaw or Ripsaw II |
Track Width |
15 in. |
Track Length |
146 in. |
Lug |
129 in or 137 in |
Pitch |
1.25 in |
Ski Stance |
41.5-42.5 in – Adjustable |
Ski Type/Width |
Trail – 6 in |
Runner Type |
Long Dual Runner 4-Bolt w/ Carbide |
INSTRUMENTATION
|
ZR 600 SNO PRO |
Type of Gauge |
Sport |
Speedometer |
Digital |
Tachometer |
Digital |
Odometer |
Digital |
Fuel |
Digital |
Oil |
LCD Icon |
Coolant |
Digital Bar Graph |
Clock |
N/A |
Battery Voltage |
N/A |
Altimeter |
N/A |
Hours |
Digital |
FEATURES
|
ZR 600 SNO PRO |
Color |
Medium Green/Black |
Heat Exchanger |
Front/Long Tunnel |
Starter |
Push-Button Electric Start |
Handlebars |
Hooked |
Lighting |
LED |
Seating |
Trail |
Standard Accessories |
12V Outlet, Sport Front Bumper, Integrated Goggle Holder, Hand & Thumb Warmers, Standard Brake Disc, Standard Steering, Tether Switch |
Windshield |
5.5 in Low Height |
*Vehicle specifications are subject to change.
*Price includes a one year warranty. Price does not include freight or set-up fees and is subject to change.
