Description
SECTOR E1
- Run Time On A Single Charge – Over 45 Miles
- Deep Cycle Battery
- 48 Volt, 27 Hp With Over 220 Ft. Lbs. Of Torque
MOTOR
|
SECTOR E1 |
Engine Type |
AC Induction |
Battery Voltage |
48 |
Battery Type |
Deep Cycle Battery |
Battery Capacity |
2080 Amp/Hours |
Charge Type |
6 – 10 hours |
Charging System |
On-Board Charger |
Horsepowe |
30 |
Torque (ft. lbs.) |
220 |
DRIVETRAIN
|
SECTOR E1 |
Transmission |
L/M/H/N/R |
Drive System |
2WD / 4WD |
Locking Differential |
Front |
Final Drive |
Direct |
Range |
> 68 Km |
STEERING & SUSPENSION
|
SECTOR E1 |
Front Suspension |
Dual A-Arm |
Rear Suspension |
Dual A-Arm |
Shocks |
Hydraulic W/ Nitrogen Assist |
Front / Rear Brakes |
Hydraulic Disc |
Parking Brake |
Mechanical |
Front Tires |
26 x 9-14 |
Rear Tires |
26 x 11-14 |
Wheels |
Aluminum |
DIMENSIONS
|
SECTOR E1 |
Length |
110″ |
Width |
62″ |
Height |
73″ |
Cargo Bed Dimensions (L x W x H) |
30″ x 41″ x 11″ |
Cargo Bed Dump Type |
Gas Assist |
Cargo Bed Capacity |
159 LBS |
Tow Rating |
680Kg |
Person Capacity |
2 |
Weight(Empty/Gross) |
935kg / 1,254kg |
Wheelbase |
72.5″ |
Ground Clearance |
11″ |
COLOUR OPTIONS
|
SECTOR E1 |
Standard Colors |
Black/Grey/Red/Bahama Blue |

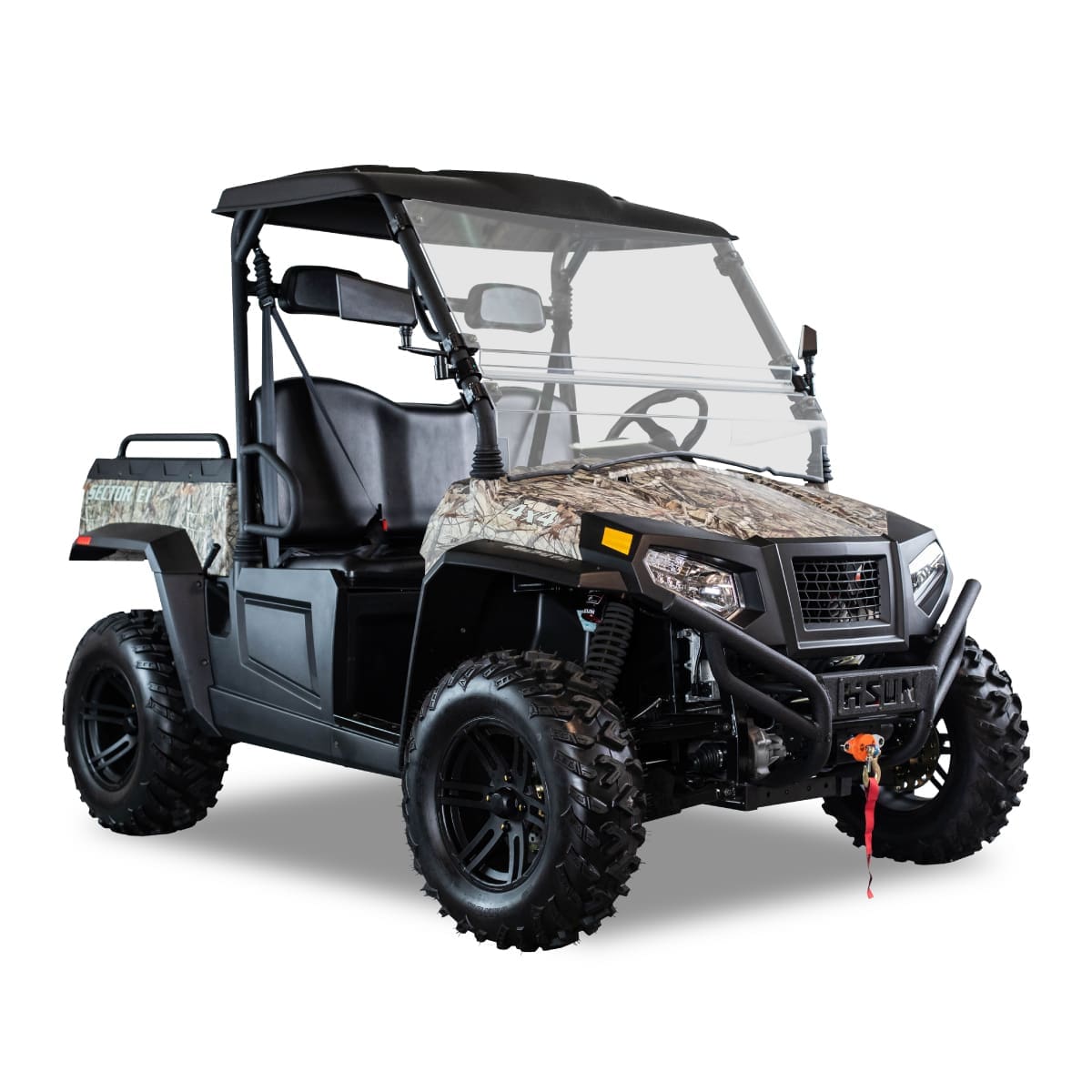

Option |
Camo |
FEATURES
|
SECTOR E1 |
Instrumentation |
Analog Speedometer & Tachometer With LCD Rider Information |
Winch |
3,500 LBS |
Roof |
Yes |
Windshield |
2-Piece |
Brake Lights |
Yes |
Headlights |
High / Low Beam |
Turn Signals & Horn |
Yes |
Doors |
Not Available |
Electronic Power Steering |
Not Available |
WARRANTY
|
SECTOR E1 |
Warranty |
2-Year Limited |
* Vehicle specifications are subject to change.
